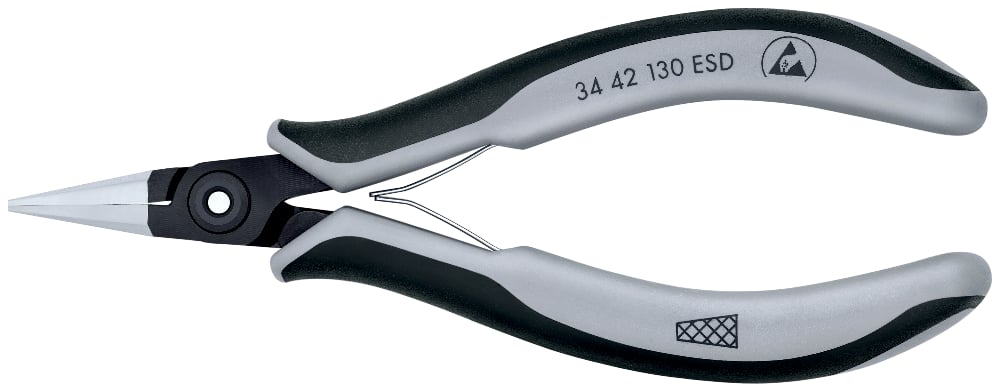

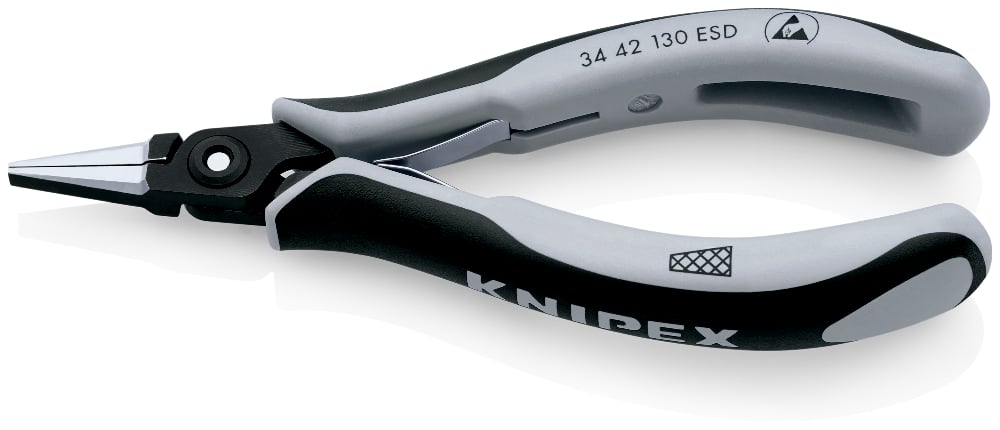

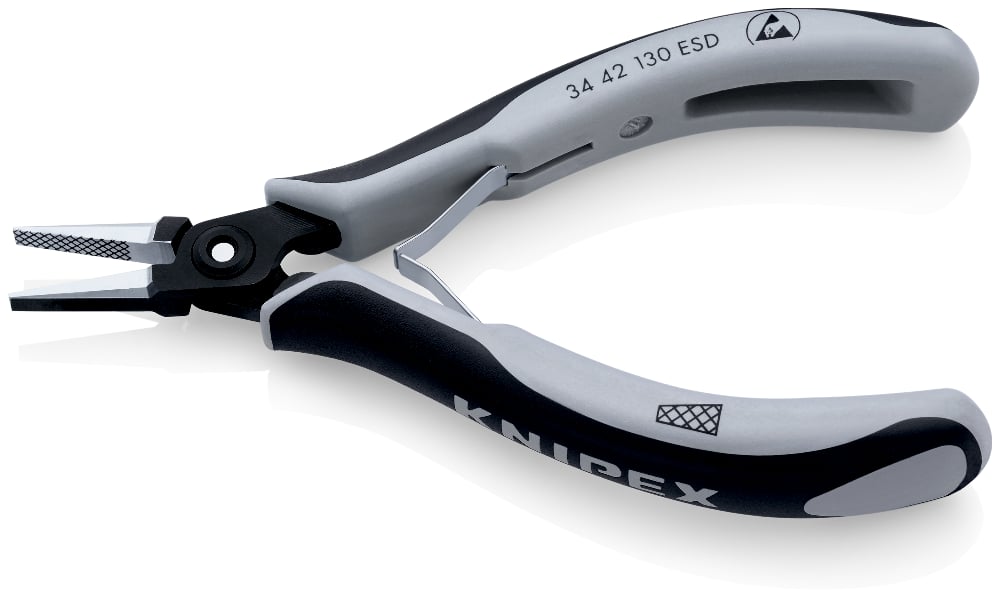

34 42 130 ESD
Precision Electronics Gripping Pliers ESD

• The assortment for highest standard of performance and results
• Precision pliers for fine assembly work, e. g. in electronics and fine mechanics
• For gripping, holding and bending
• Electrically discharging handles – dissipative
• Bolted joint: precise, zero backlash operation of pliers
• Precisely finished joint surfaces for smooth, low friction movement along the complete opening range
• Low-friction double spring for smooth and even opening

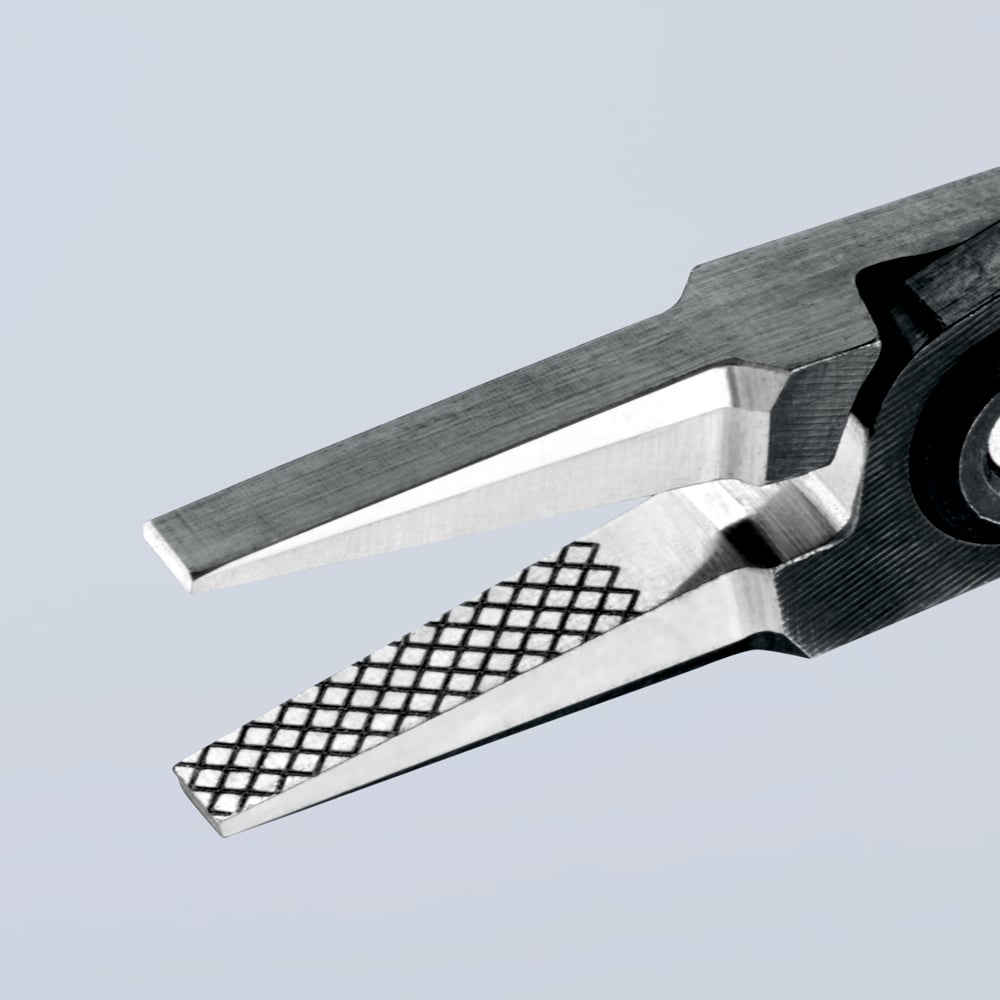

• With precision laser cut cross-shaping
• Non-reflective finish
• Low weight
• Ergonomically shaped, two-colour dual component ESD handles, black/grey

Technical attributes

Part No. 34 42 130 ESD
EAN 4003773080299
Pliers burnished
Head polished
Handles with multi-component handles
Weight 61 g
Dimensions 130 x 51 x 20 mm
Standard DIN ISO 9655 DIN EN 61 340-5
REACH compliant does not contain SVHC
RoHS compliant not applicable
Jaw length (B) 21.9 mm
Jaw thickness (joint) (D) 6.5 mm
Tips width (E) 1.4 mm
Tips thickness (F) 3.5 mm
Head width (A) 11.2 mm
ESD yes
