25 01 125
Snipe Nose Side Cutting Pliers
• Half-round, long, tapered jaws
• Suitable for finer gripping and cutting work, also on easy and semi-difficult to reach areas
• Knurled gripping surfaces
• With cutting edges for soft, medium-hard and hard wire
• Cutting edges additionally induction-hardened, cutting edge hardness approx. 61 HRC
Technical attributes
| Part No. | 25 01 125 |
|---|---|
| EAN | 4003773015932 |
| Pliers | black atramentized |
| Head | polished |
| Handles | with plastic coating |
| Weight | 73 g |
| Dimensions | 125 x 56 x 12 mm |
| Standard | DIN ISO 5745 |
| REACH compliant | does not contain SVHC |
| RoHS compliant | not applicable |
| Cutting capacities medium hard wire (diameter) | Ø 2.2 mm |
| Cutting capacities hard wire (diameter) | Ø 1.6 mm |

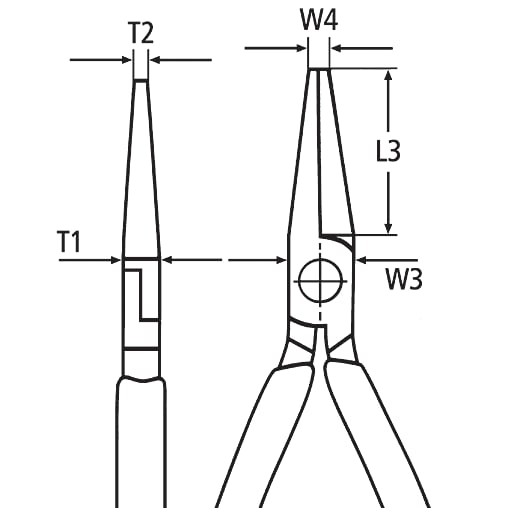

| Jaw thickness (joint) (T1) | 7.0 mm |
| Tips width (W4) | 2.5 mm |
| Tips thickness (T2) | 1.8 mm |
| Jaw length (L3) | 27.0 mm |
| Head width (W3) | 13 mm |
