14 26 160

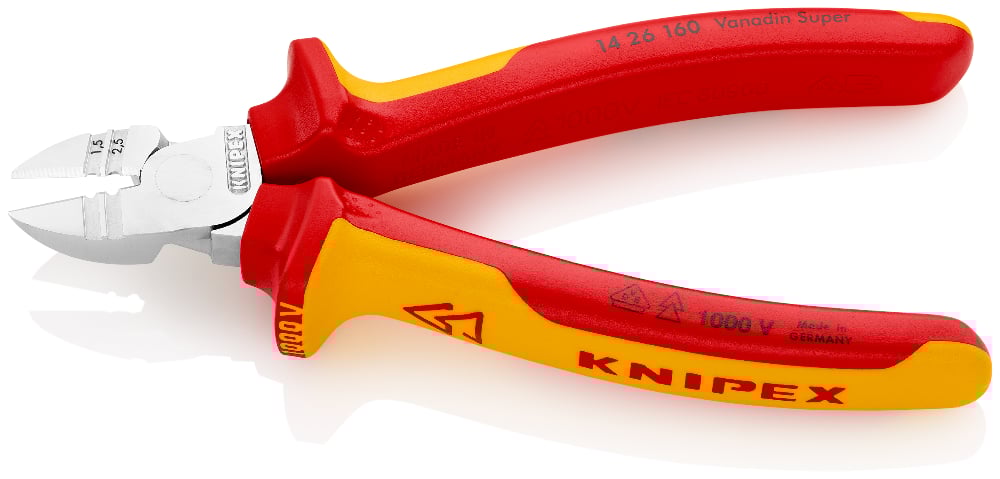

Diagonal Insulation Stripper
• With long cutter
• High cutting capacity due to high transmission ratio
• Precision stripping holes for single conductors of 1.5 and 2.5 mm²
• Convenient cutting of NYM cables up to 5 x 2.5 mm²
• Long tips for ultra fine cutting work also in confined areas
• Induction-hardened precision blades, cutting edge hardness approx. 60 HRC
Technical attributes
| Part No. | 14 26 160 |
|---|---|
| EAN | 4003773040279 |
| Pliers | chrome-plated |
| Head | chrome-plated |
| Handles | insulated with multi-component grips, VDE-tested |
| Weight | 238 g |
| Dimensions | 160 x 60 x 30 mm |
| Standard | DIN EN 60900 IEC 60900 |
| REACH compliant | does not contain SVHC |
| RoHS compliant | not applicable |
| Cutting capacities soft wire (diameter) | Ø 2.5 mm |
| Cutting capacities medium hard wire (diameter) | Ø 1.5 mm |
| Stripping capacities in square millimetres | 1.5 / 2.5 mm² |
| AWG | 16 / 14 |
| VDE tested | yes |
