13 91 200

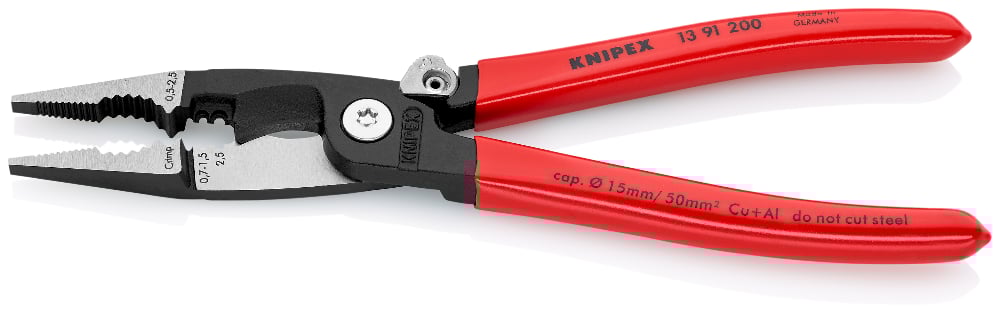

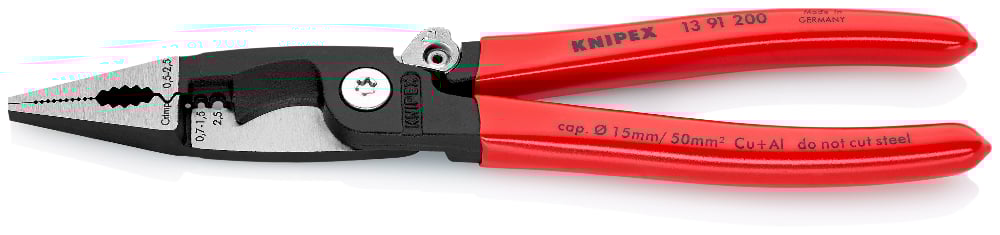

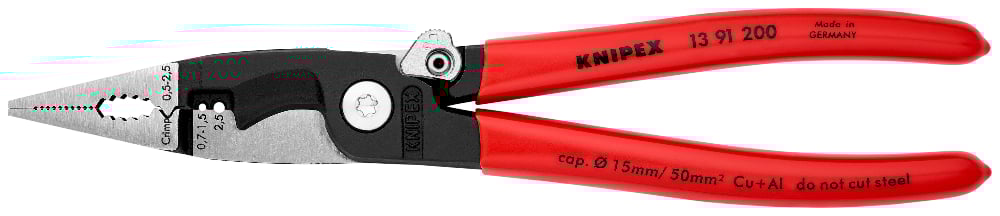

Pliers for Electrical Installation

• 6 functions in one pair of pliers

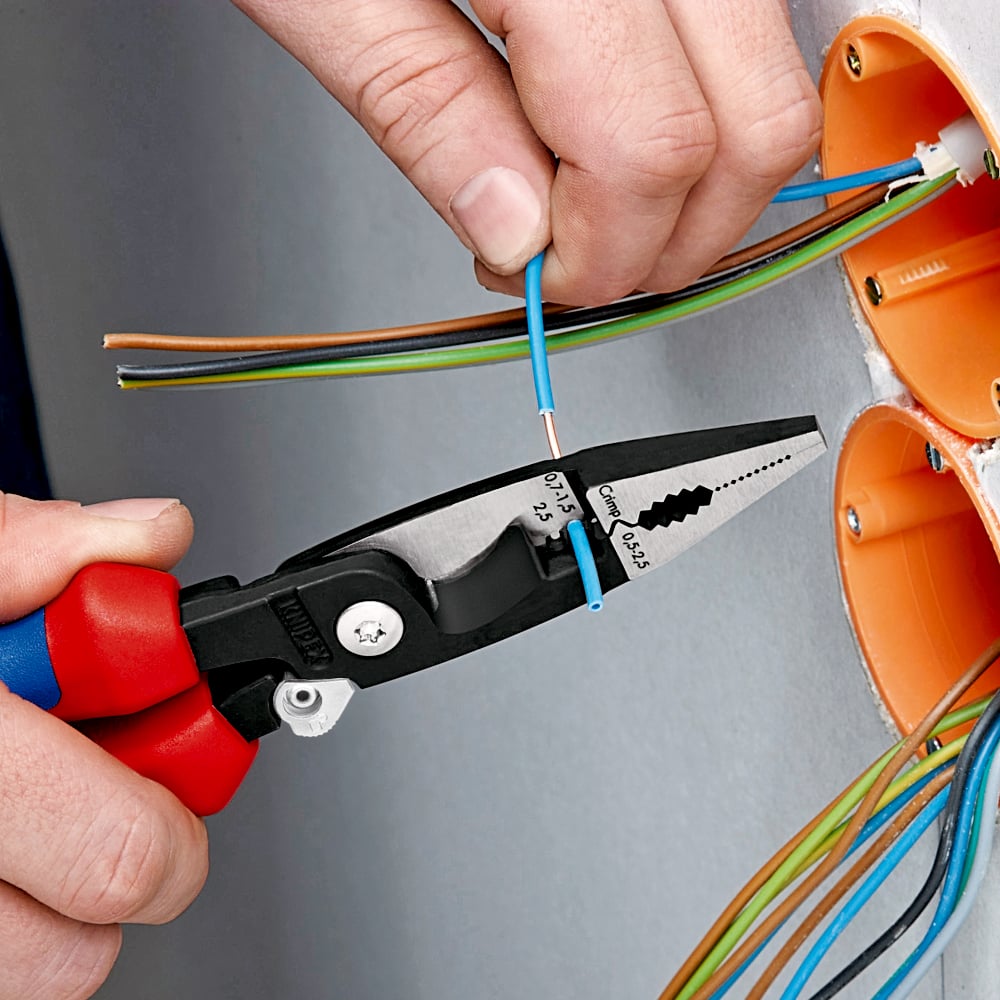

• To grip flat and round material, for bending, deburring, cutting cable, stripping and crimping wire ferrules
• Smooth surfaces near the tips grip single cores without damaging them; serrated gripping surfaces and pipe grip for gripping flat and round material
• Clear-cut outside edge on the gripping surfaces for working on flush-mounted junction boxes and deburring feed-through holes

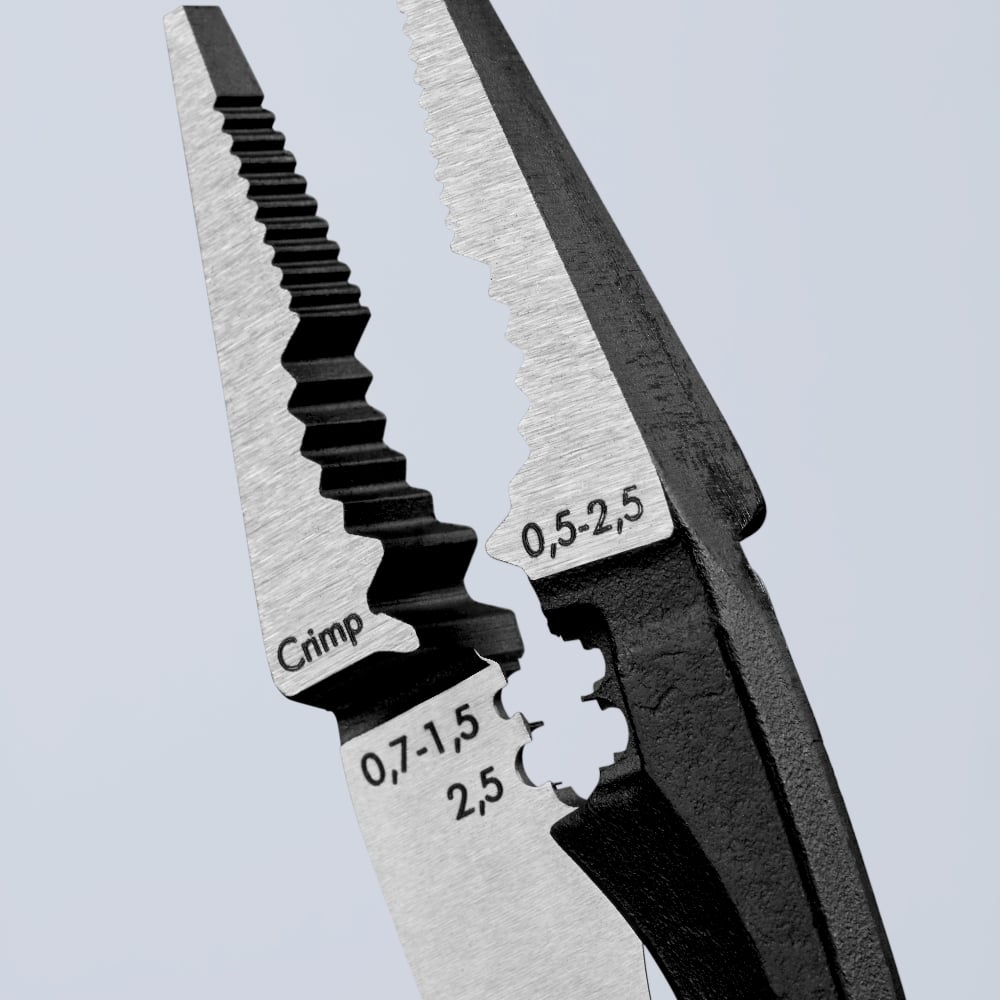

• Stripping holes for conductors of 0.75 – 1.5 mm² and 2.5 mm²

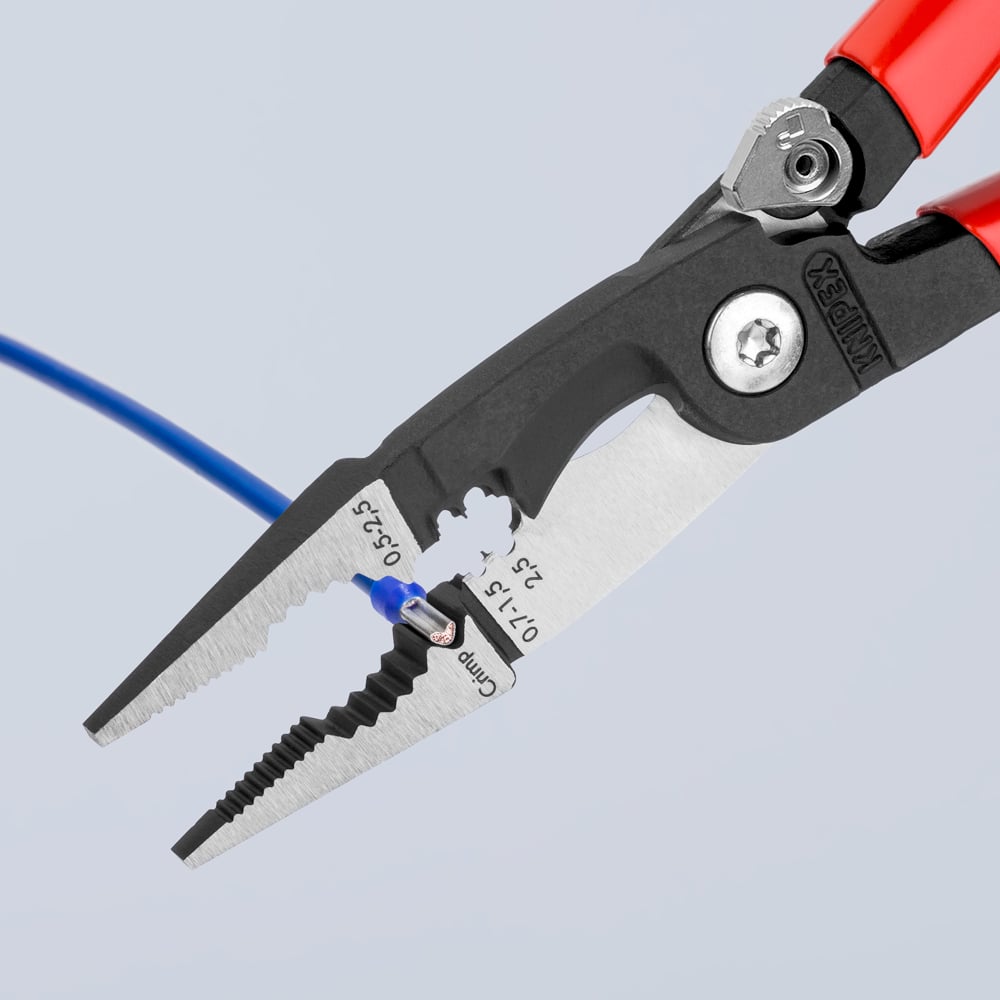

• Crimping die for wire ferrules 0.5 – 2.5 mm²
• Cable shears with (induction-hardened) precision cutting edges for copper and aluminium cables up to 5 x 2.5 mm² / Ø 15 mm
• Slim dimensions for easy access
• Bolted joint: precise, zero backlash operation of pliers
• In case of models with opening spring integrated in the joint, the activated locking lever keeps the cutting edges closed while other functions remain active
• The intelligent latching mechanism enables you to “grip” without opening the pliers. The cutting edge remains closed and protected.
