12 52 195

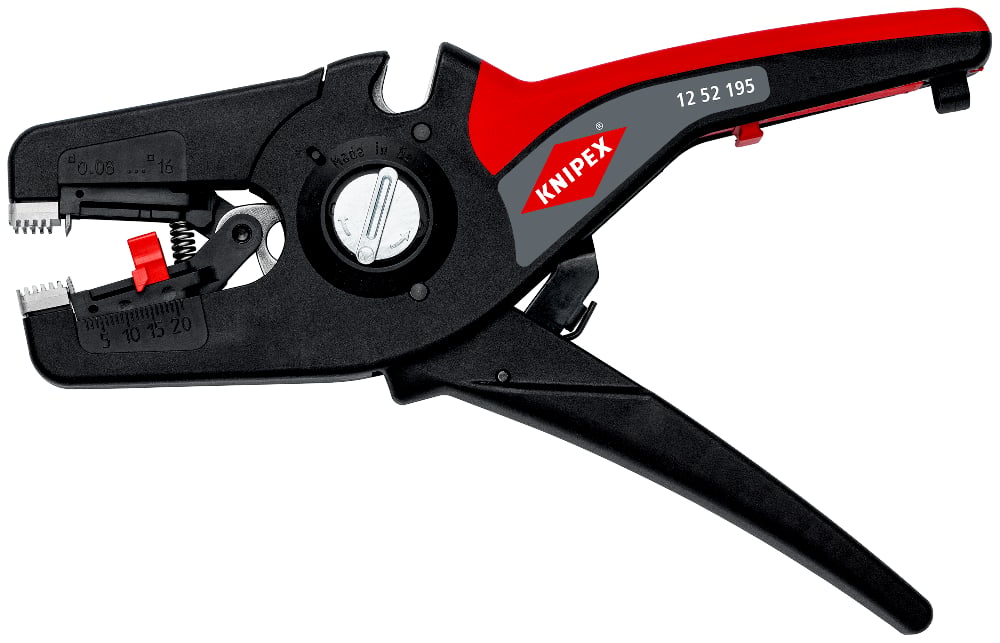

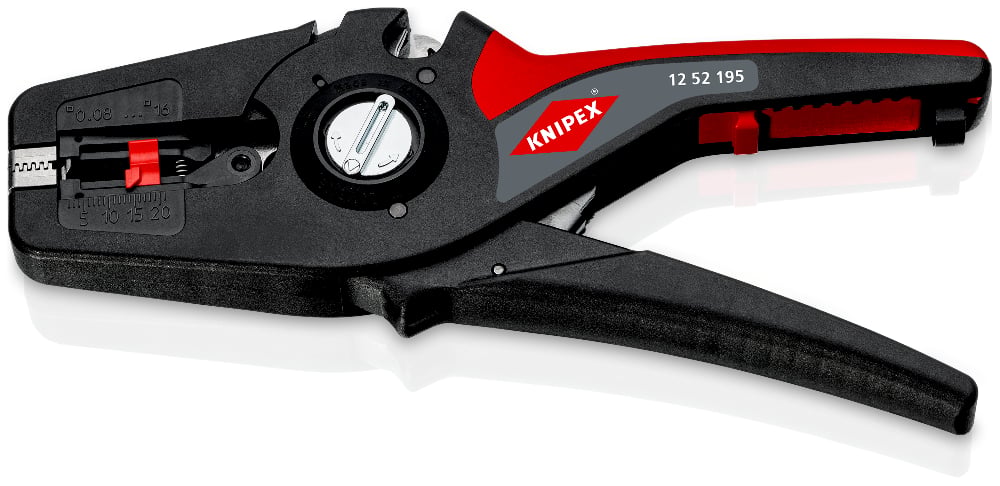

KNIPEX PreciStrip16®

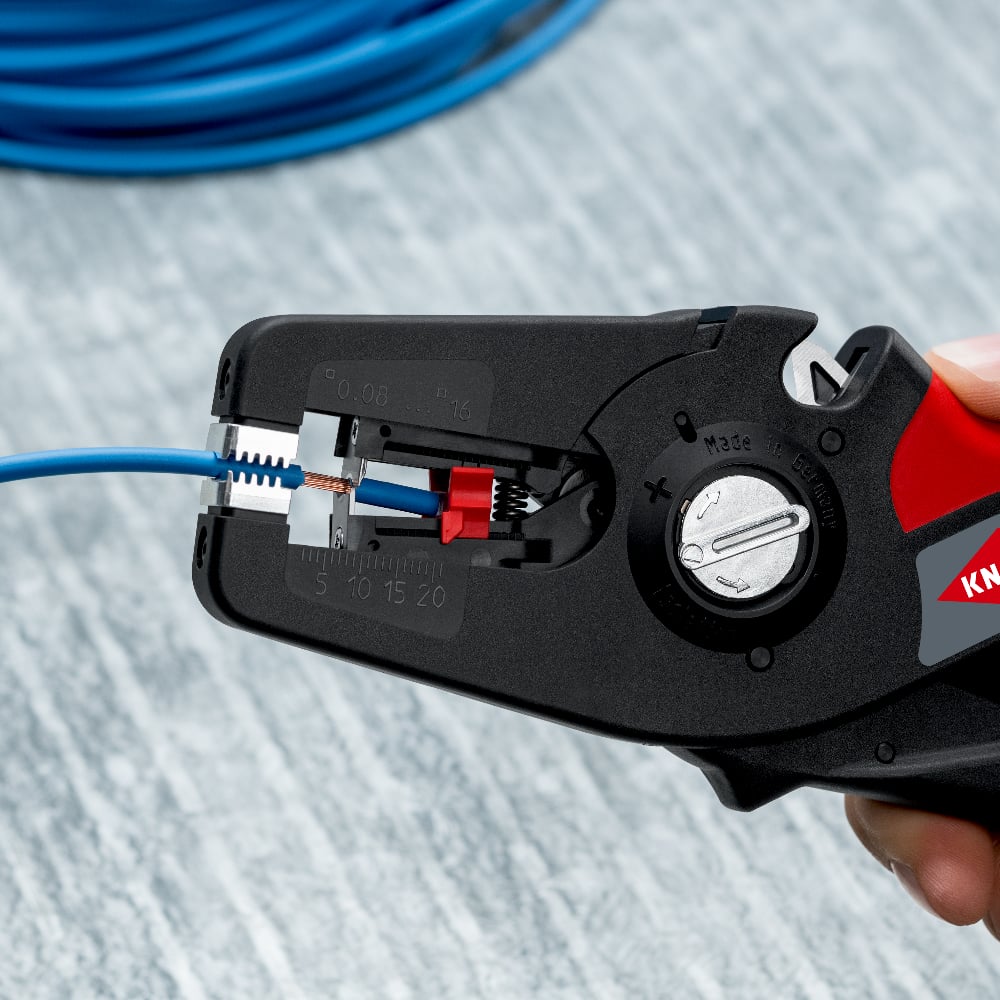

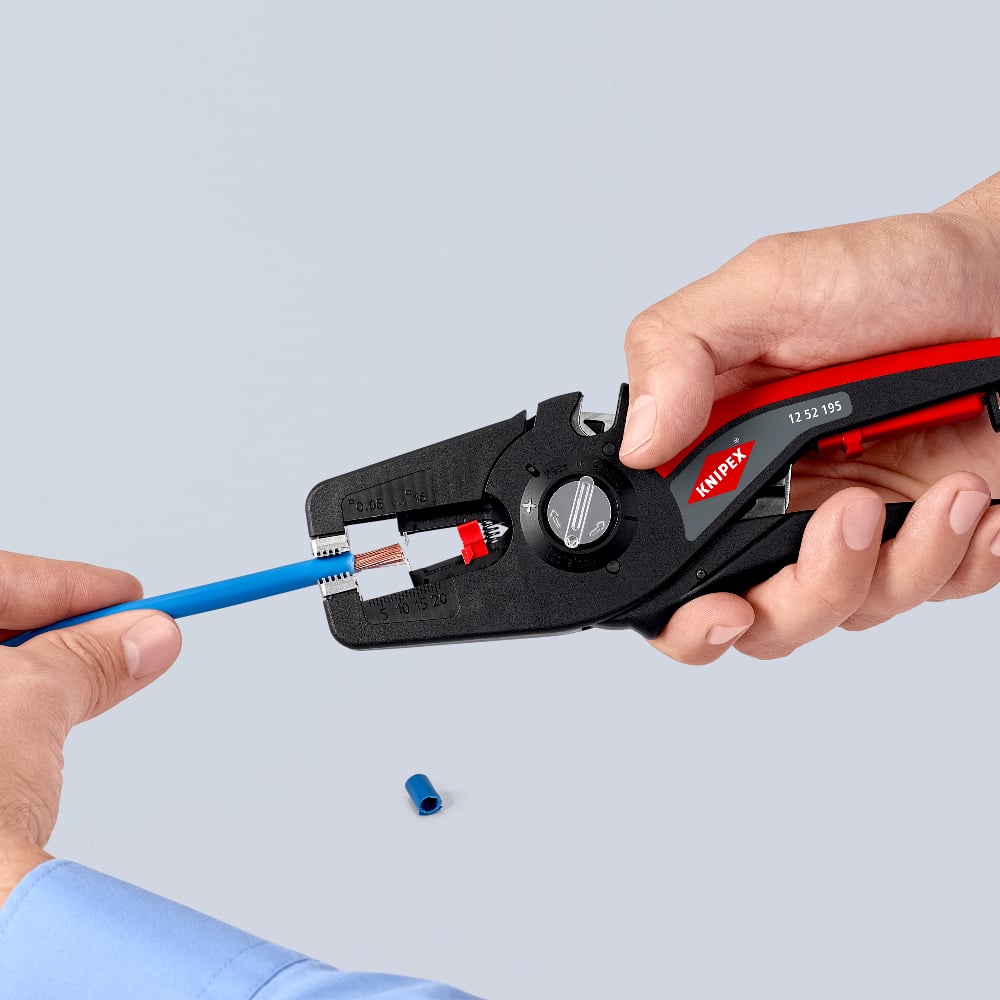

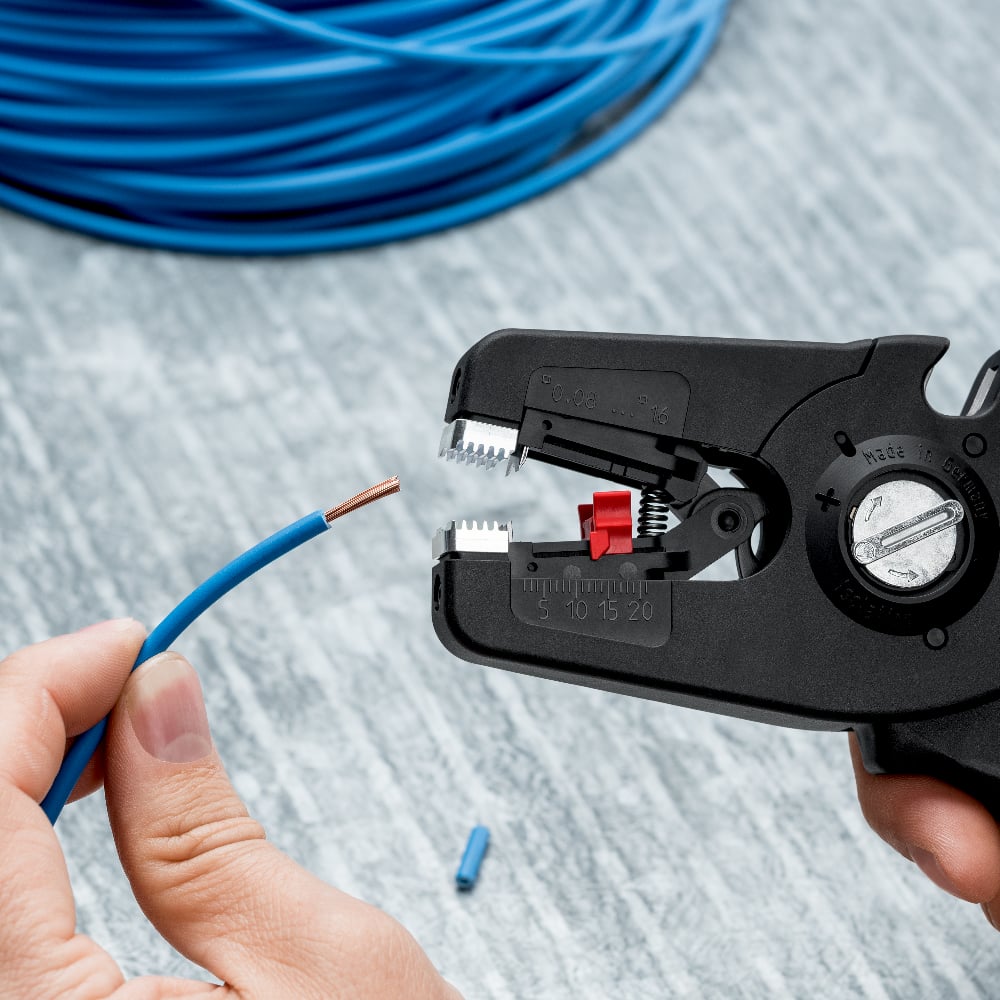

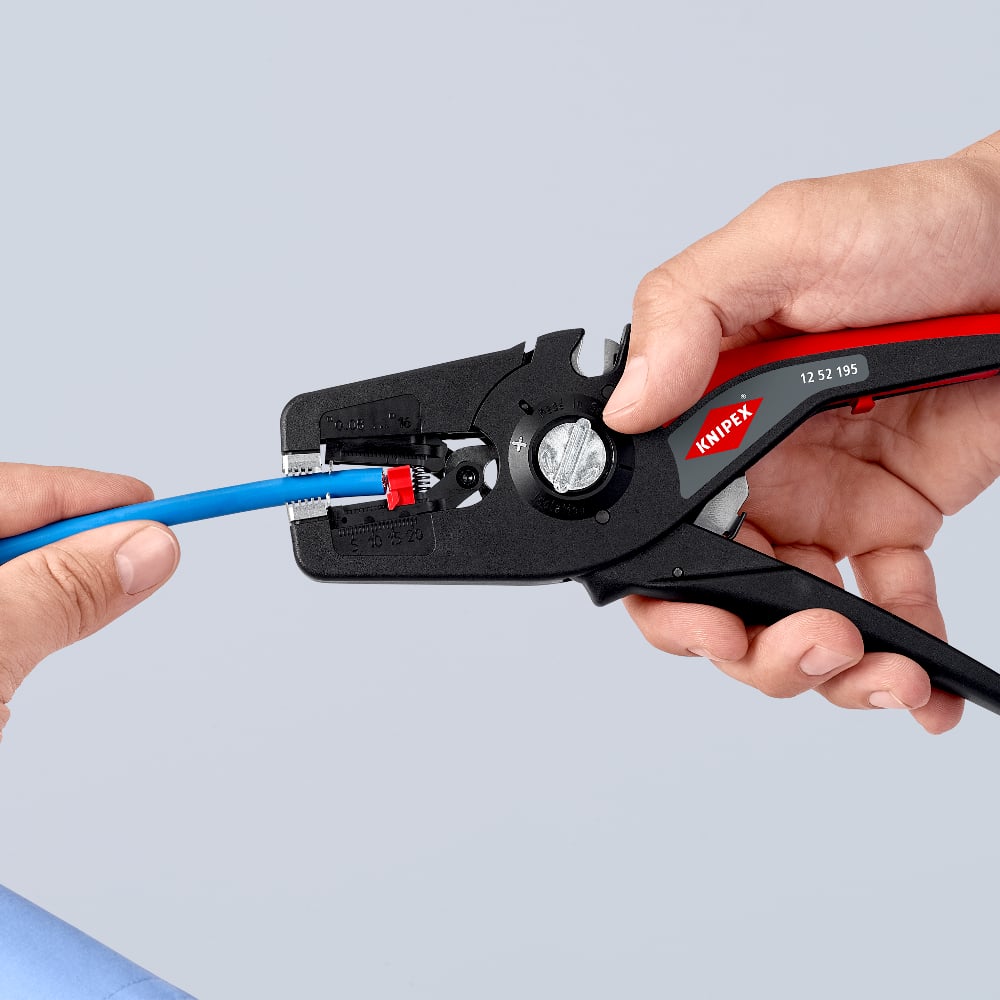

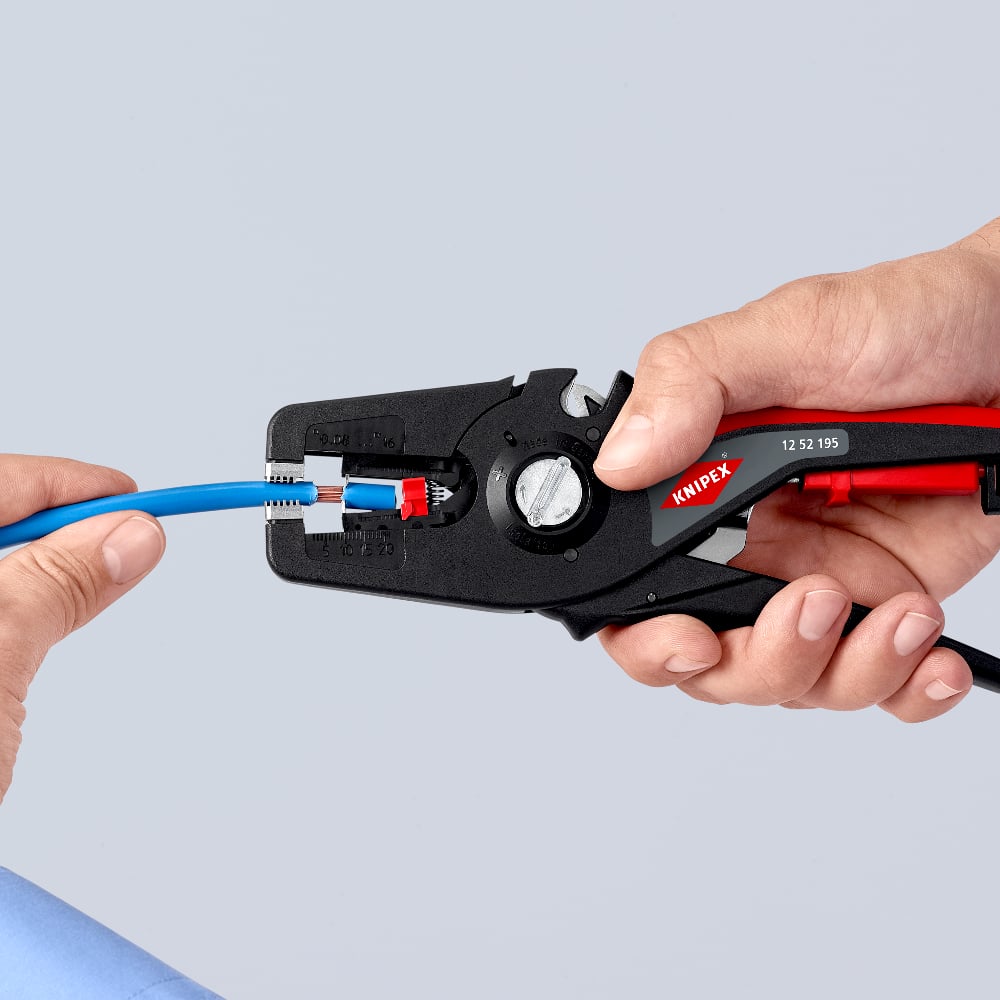

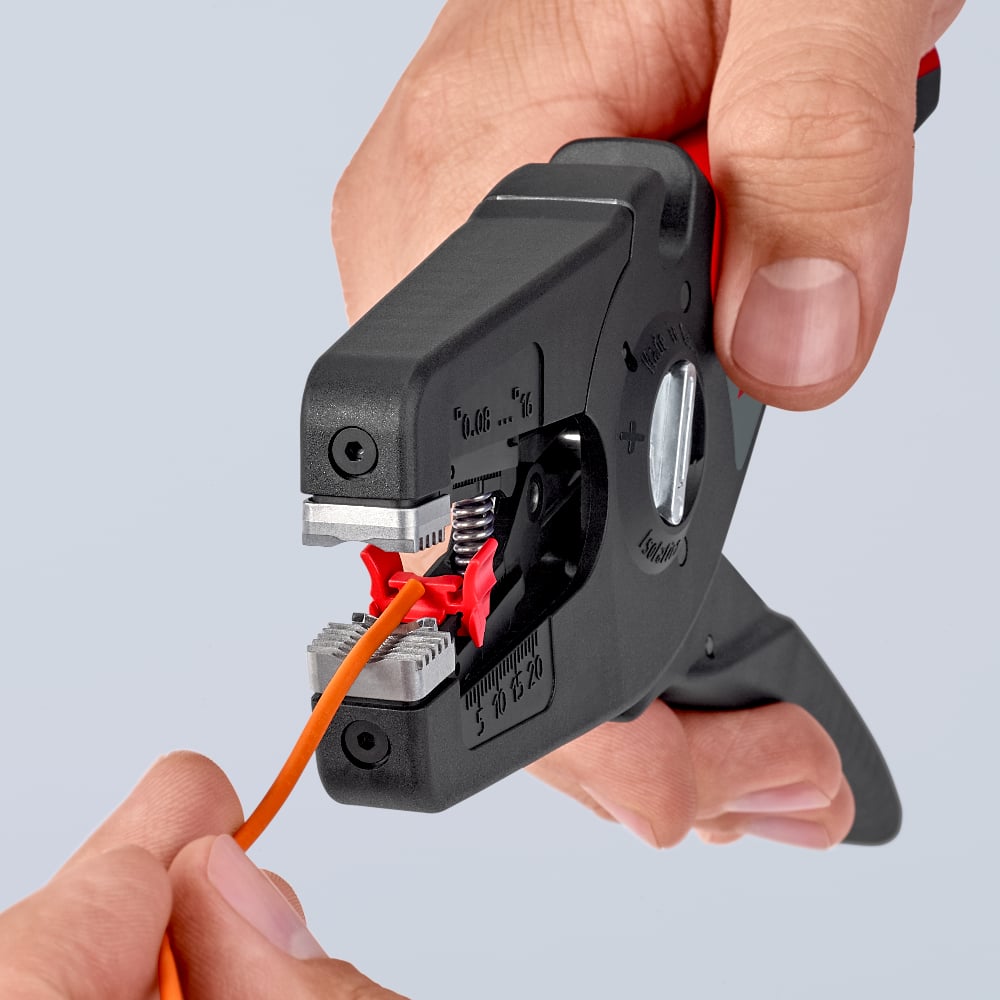

• Simple, precise stripping of fine wires and solid round cables with a wide capacity range from 0.08 to 16 mm² with only one pair of pliers

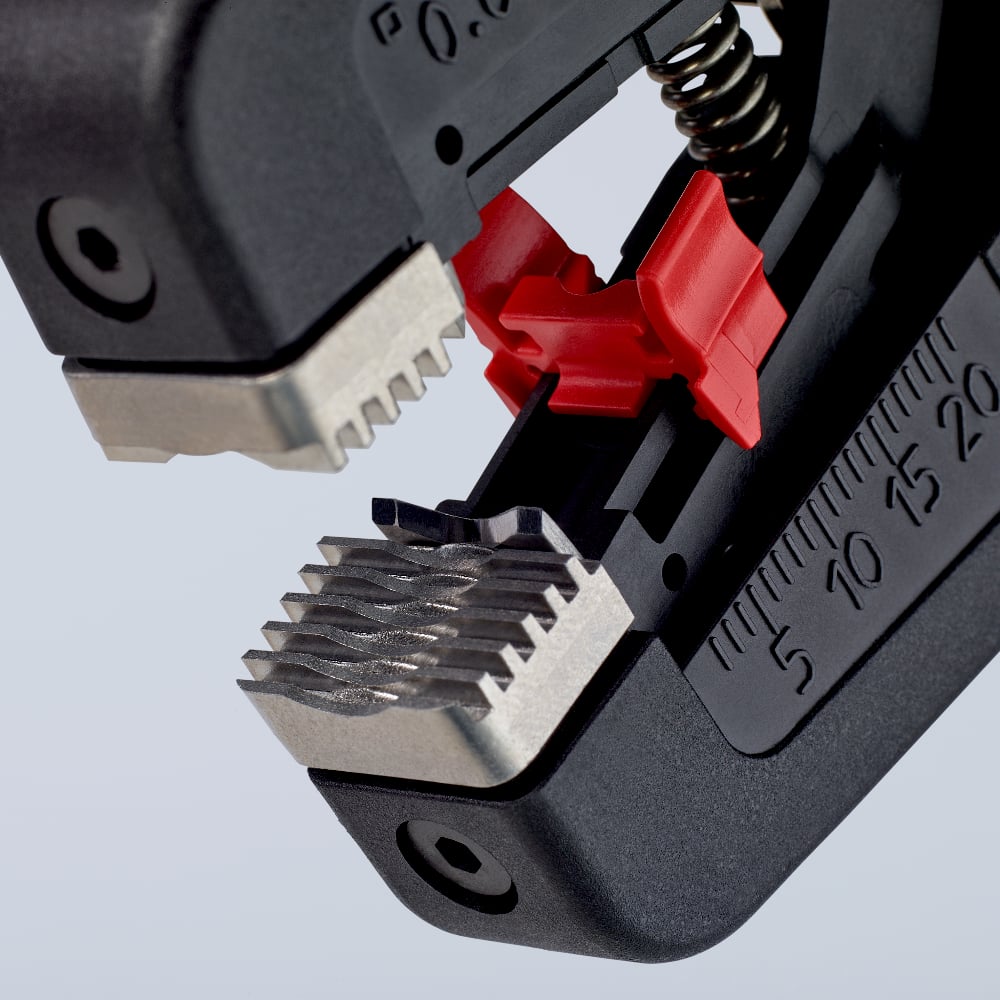

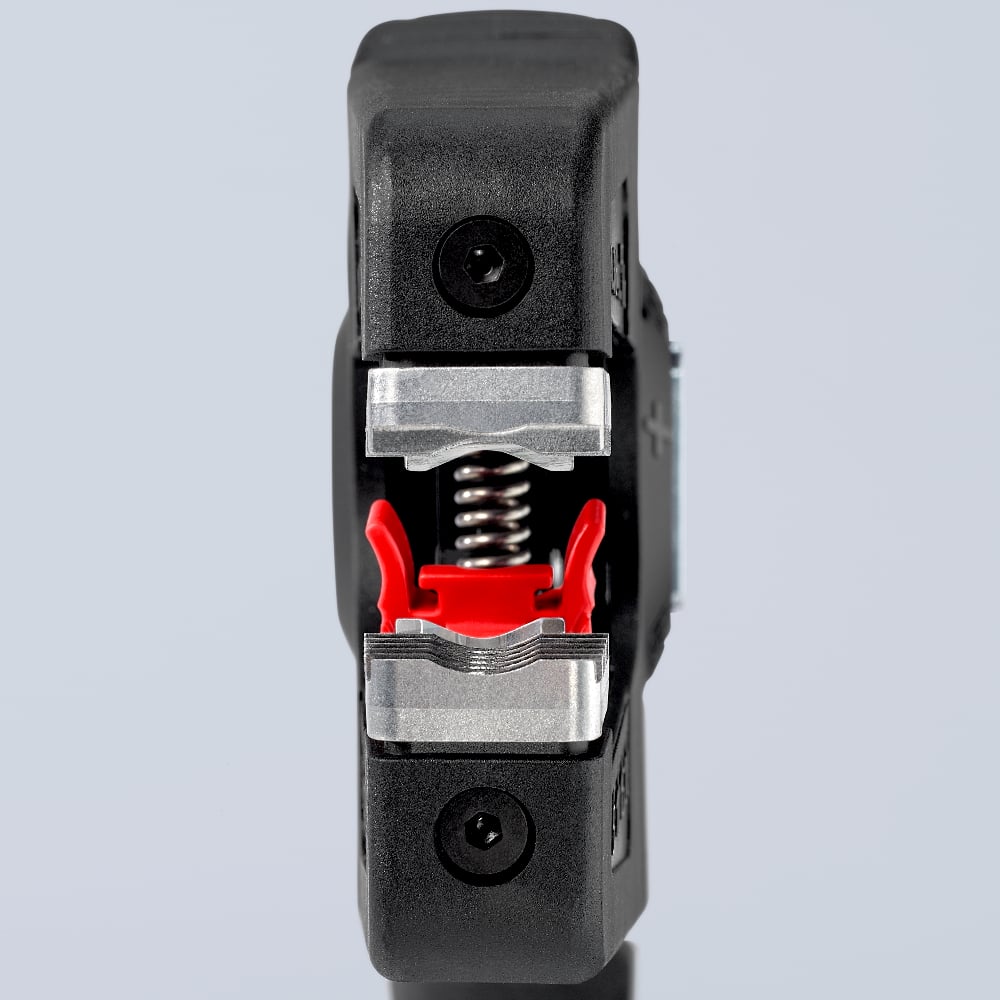

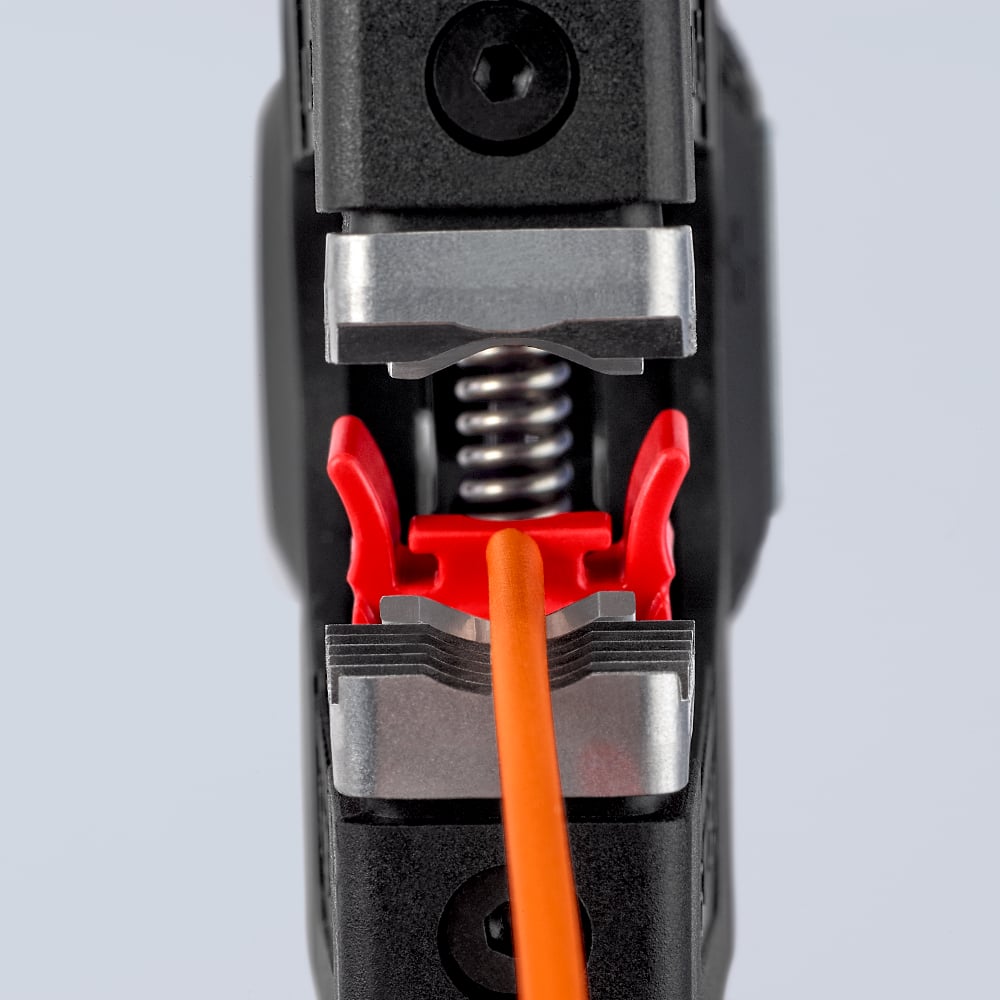

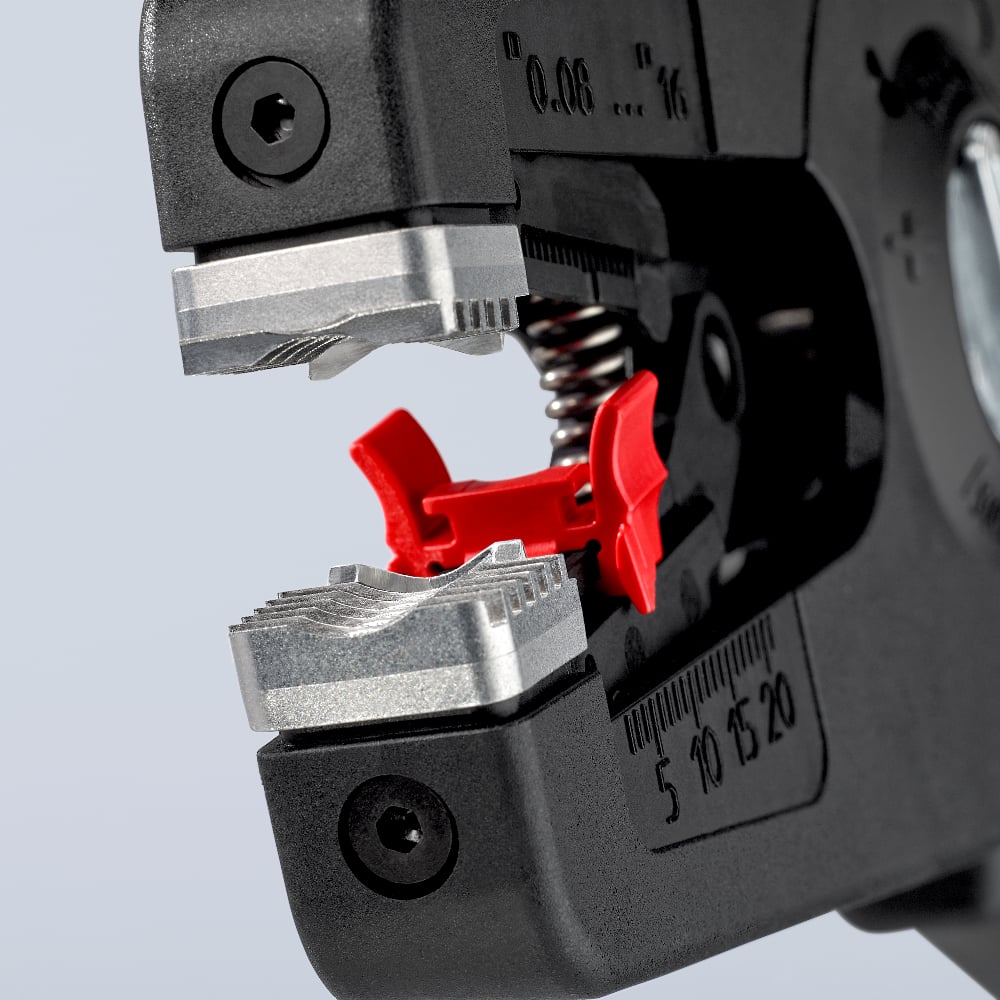

• Good grip provided by semi-circular grooved metal holding clamps; exact cut thanks to parabolic stripping blade

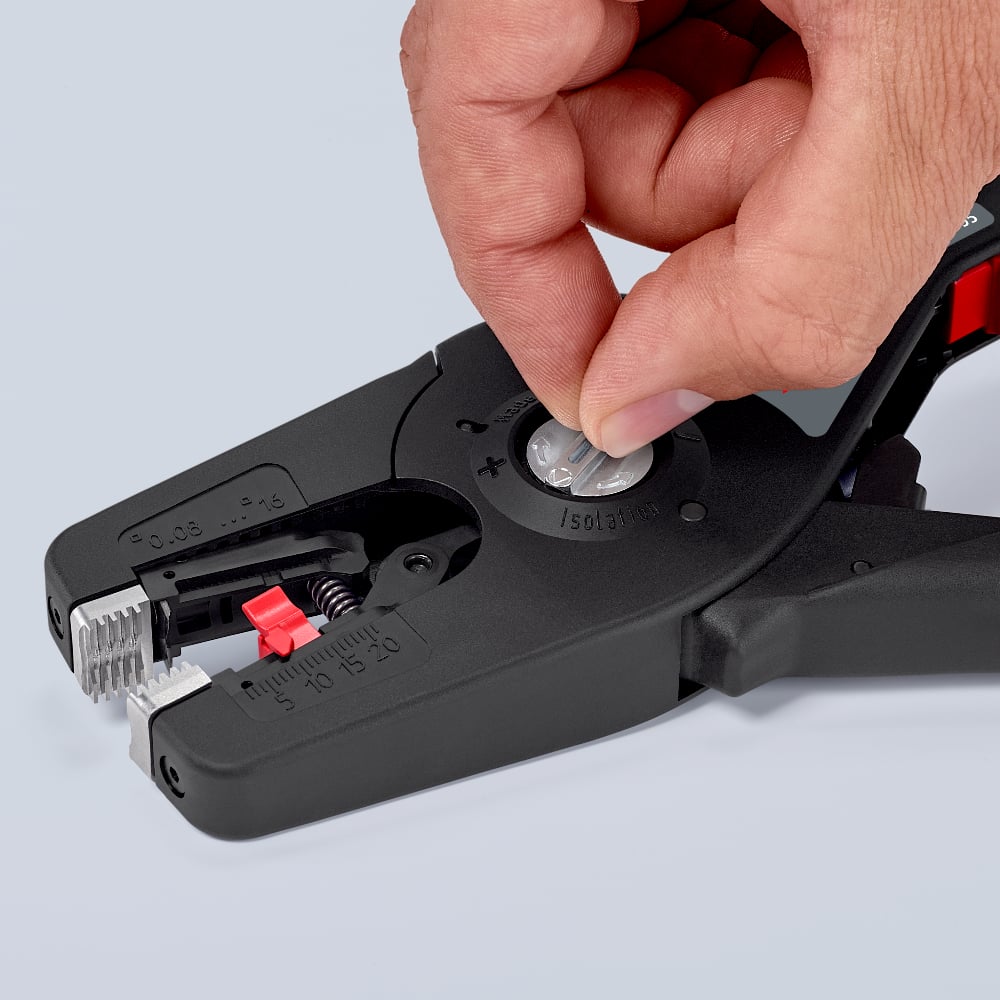

• An automatism regulates the depth of the cut; the neutral point of the automatism can be adjusted in fine steps in special operating conditions (insulation material, temperature)

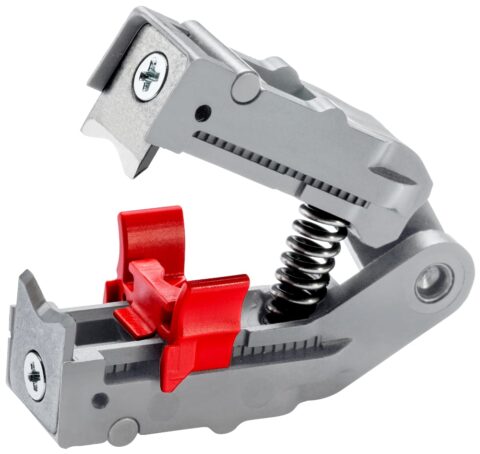

• Additionally available: Blade block (12 49 32) for very hard halogen-free cables from 4 – 16 mm²

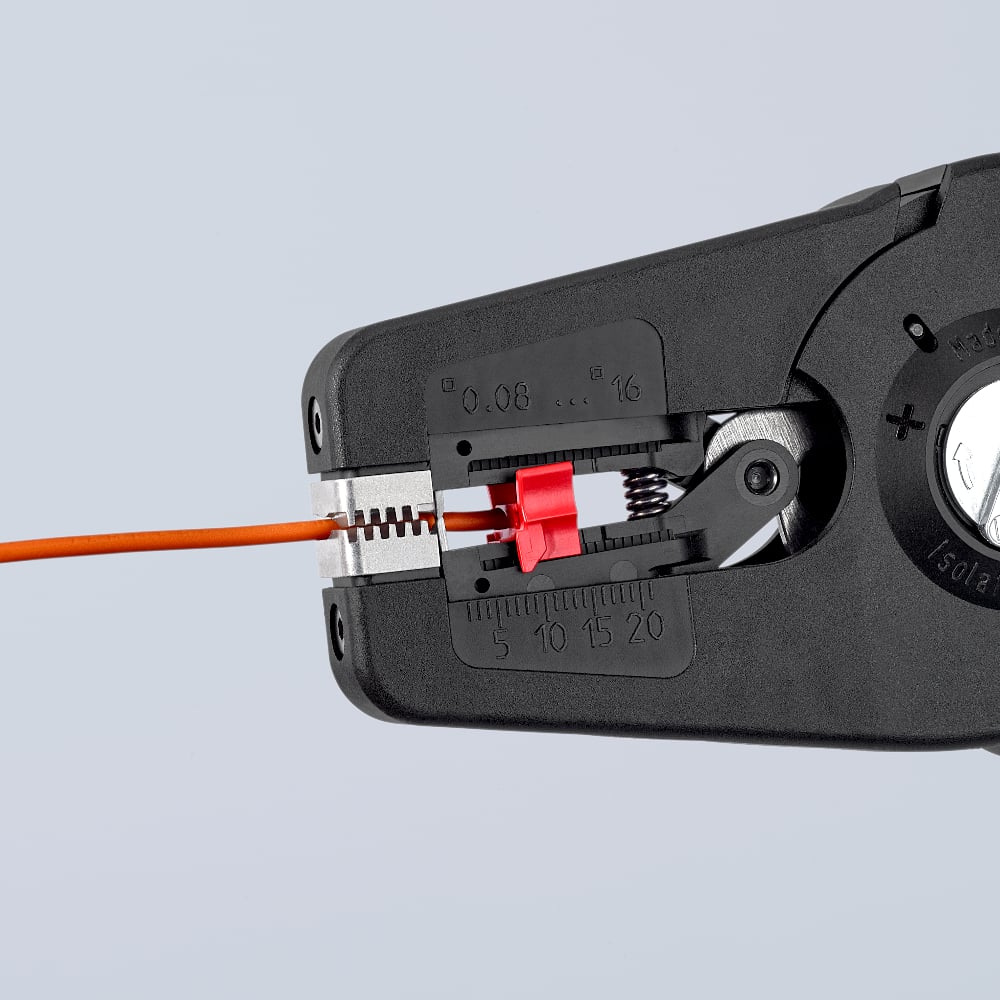

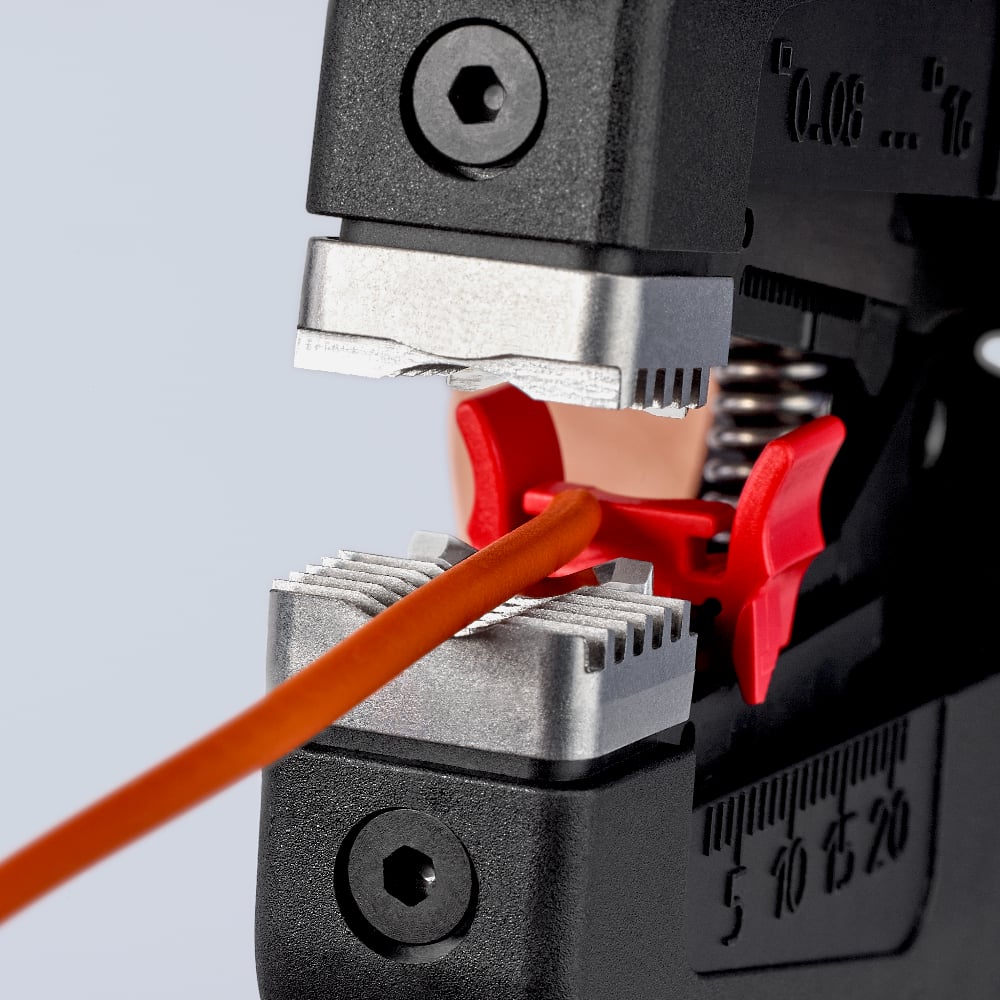

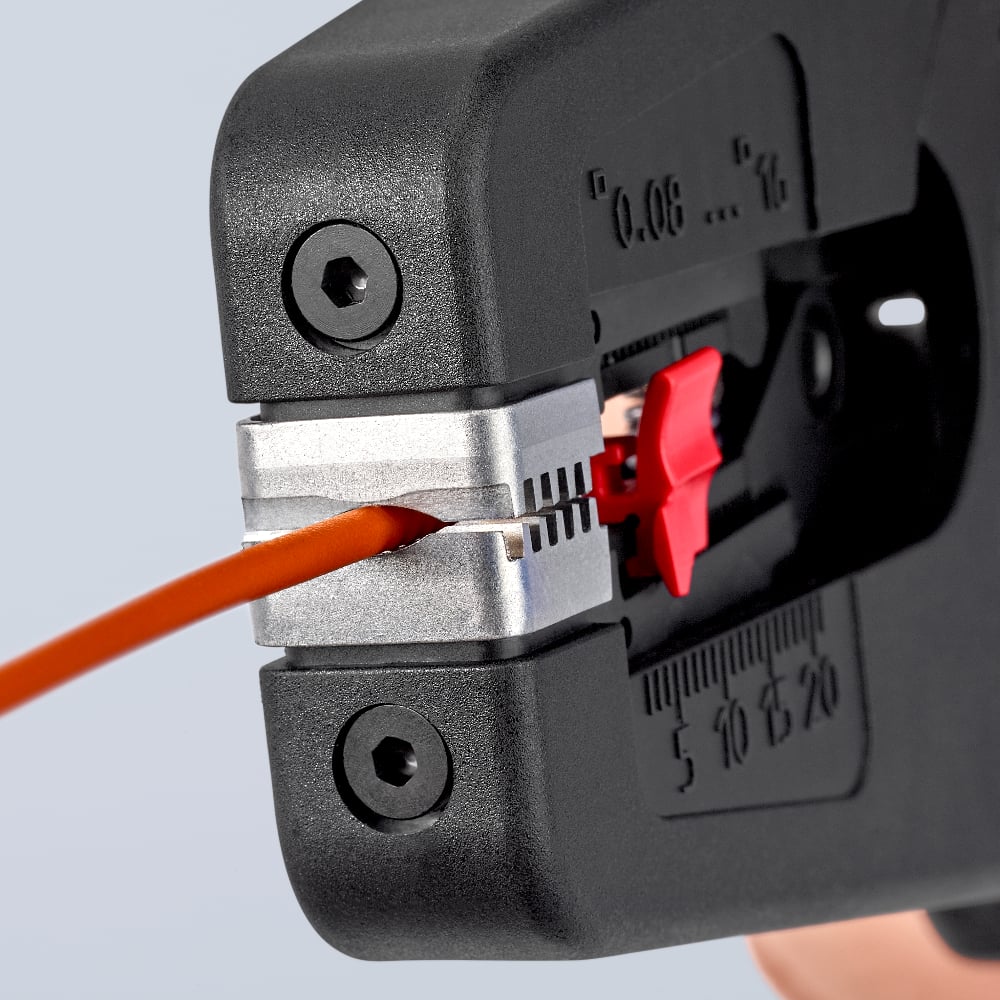

• With adjustable length stop for precision work repeated accurately each time

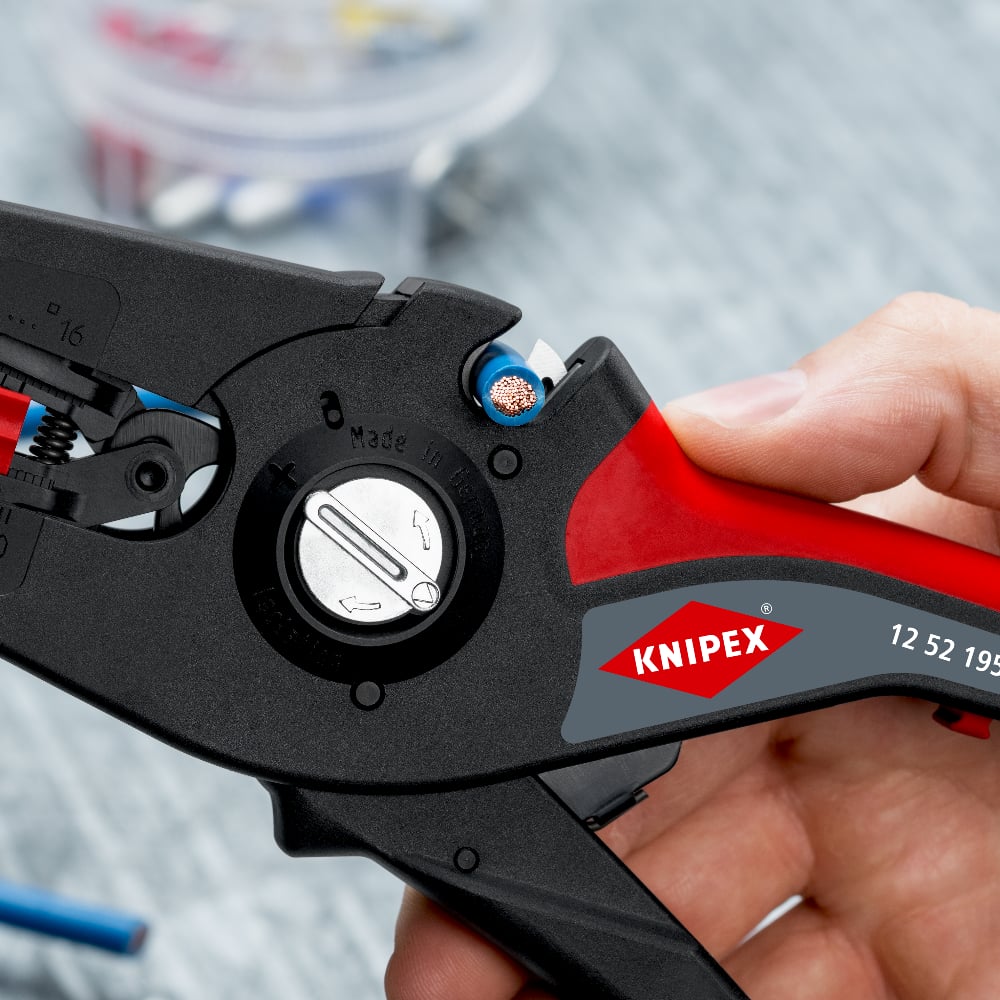

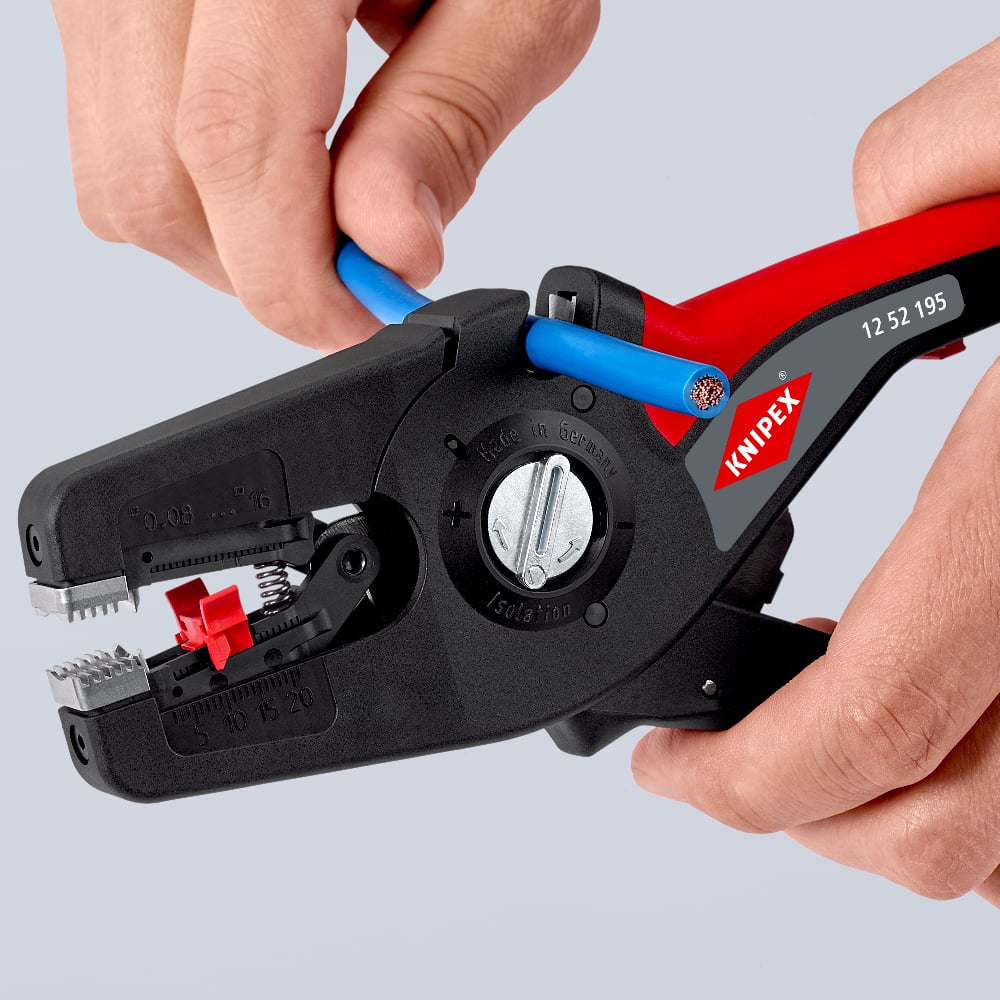

• With cable cutter on top for copper and aluminum conductors, flexible up to 16 mm² (AWG 6), solid up to 6 mm² (AWG 10)

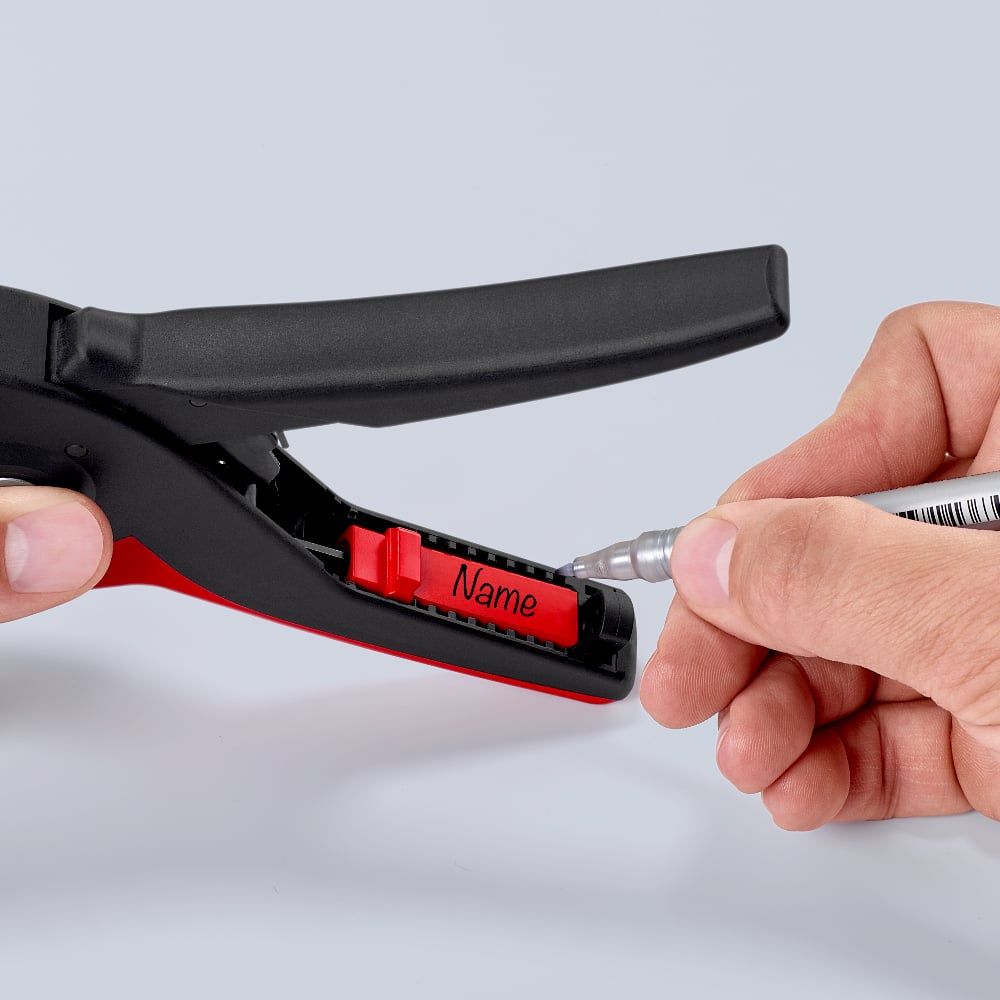

• Inscription area for customisation
• Comfortable operation with ergonomic dual-component handle

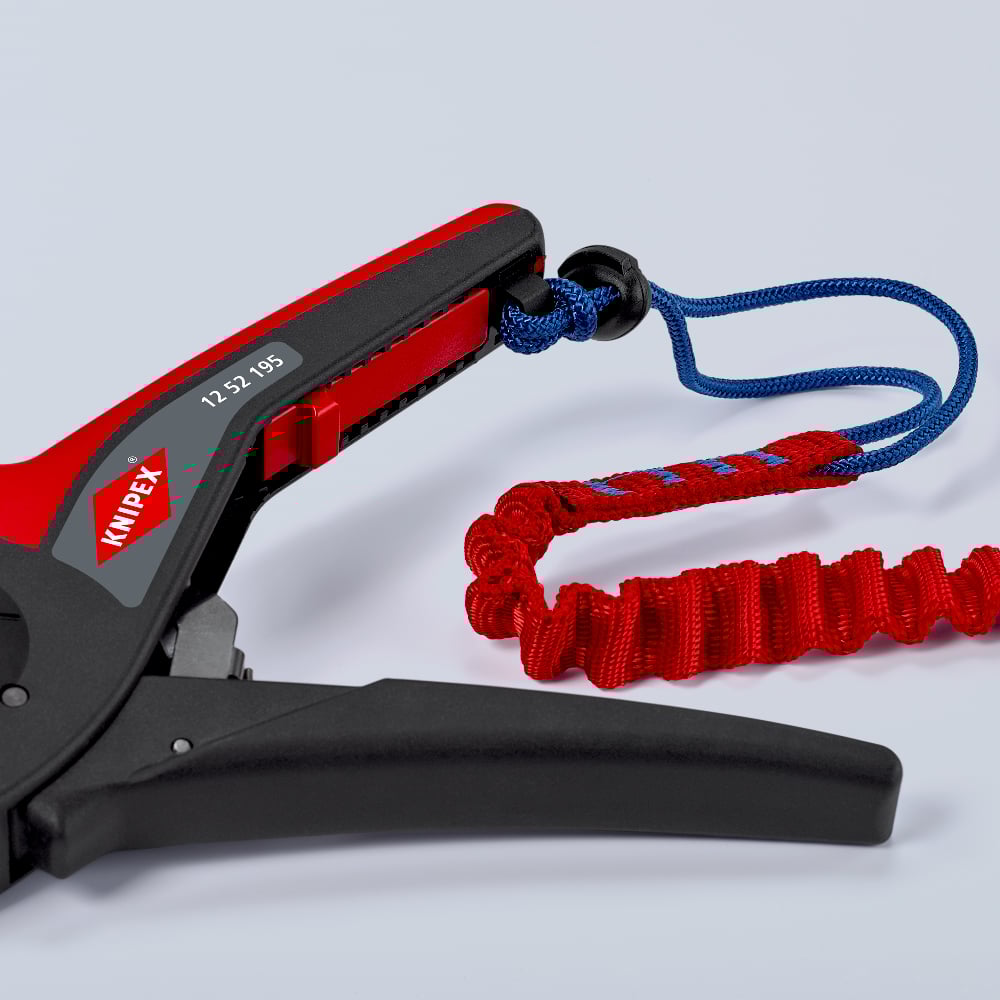

• With tether attachment point, suitable for KNIPEX Tethered Tools accessories

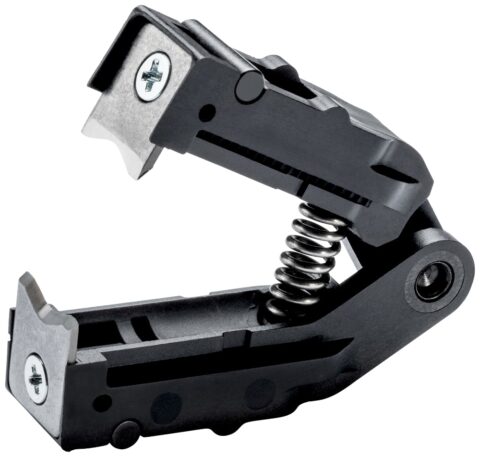

• Easily replaceable blade cassette
Technical attributes
| Part No. | 12 52 195 |
|---|---|
| EAN | 4003773085829 |
| Weight | 180 g |
| Dimensions | 190 x 120 x 28 mm |
| REACH compliant | contains SVHC |
| RoHS compliant | not applicable |
| Stripping capacities in square millimetres | 0.08 — 16.0 mm² |
| AWG | 28 — 6 |
