12 12 06

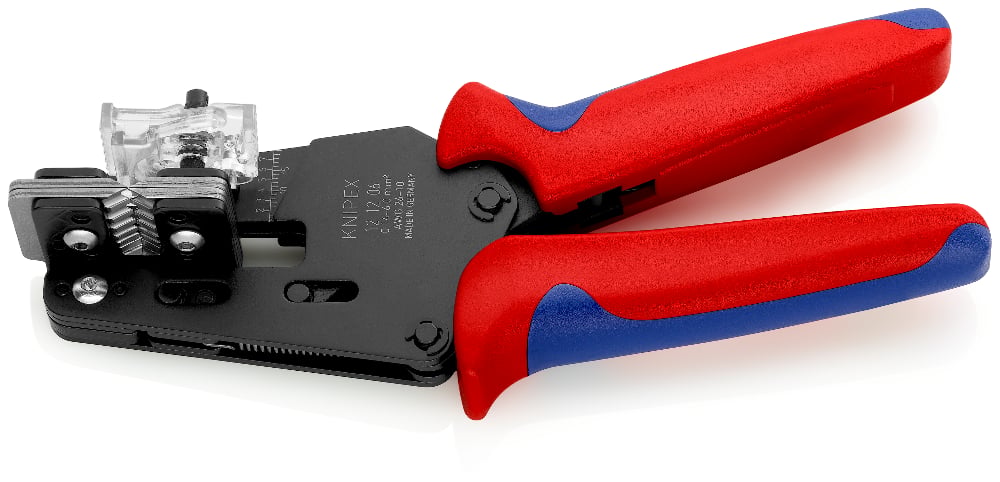

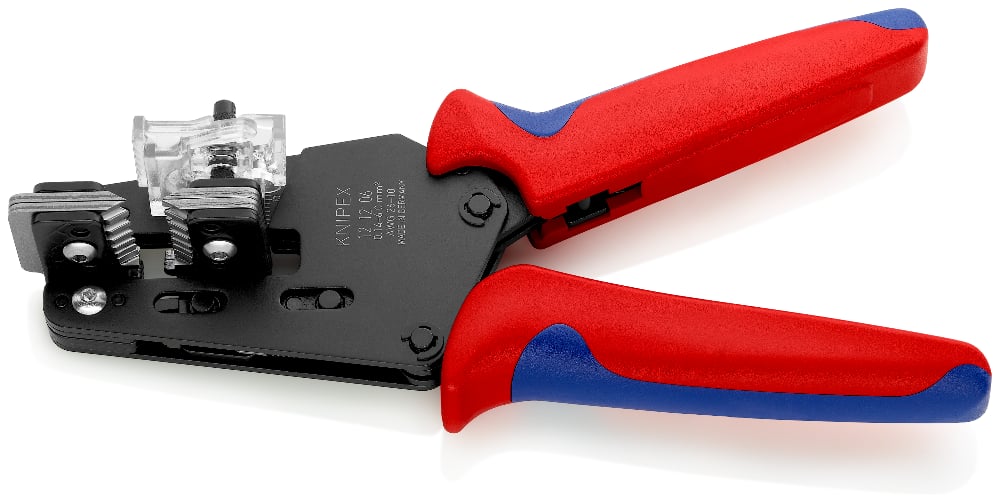

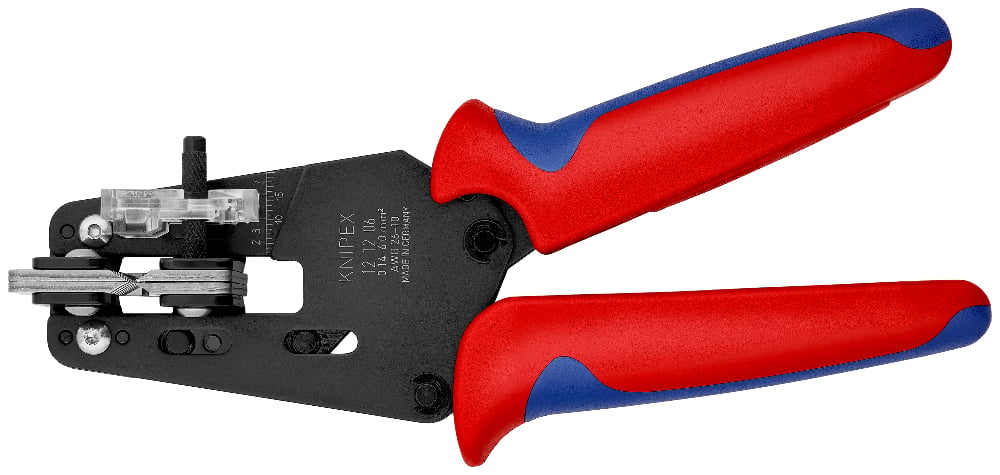

Precision Insulation Stripper
• Form-fit stripping of difficult-to-remove insulating materials made of PTFE, silicone, Radox®, Kapton® and rubber; multi-layer too

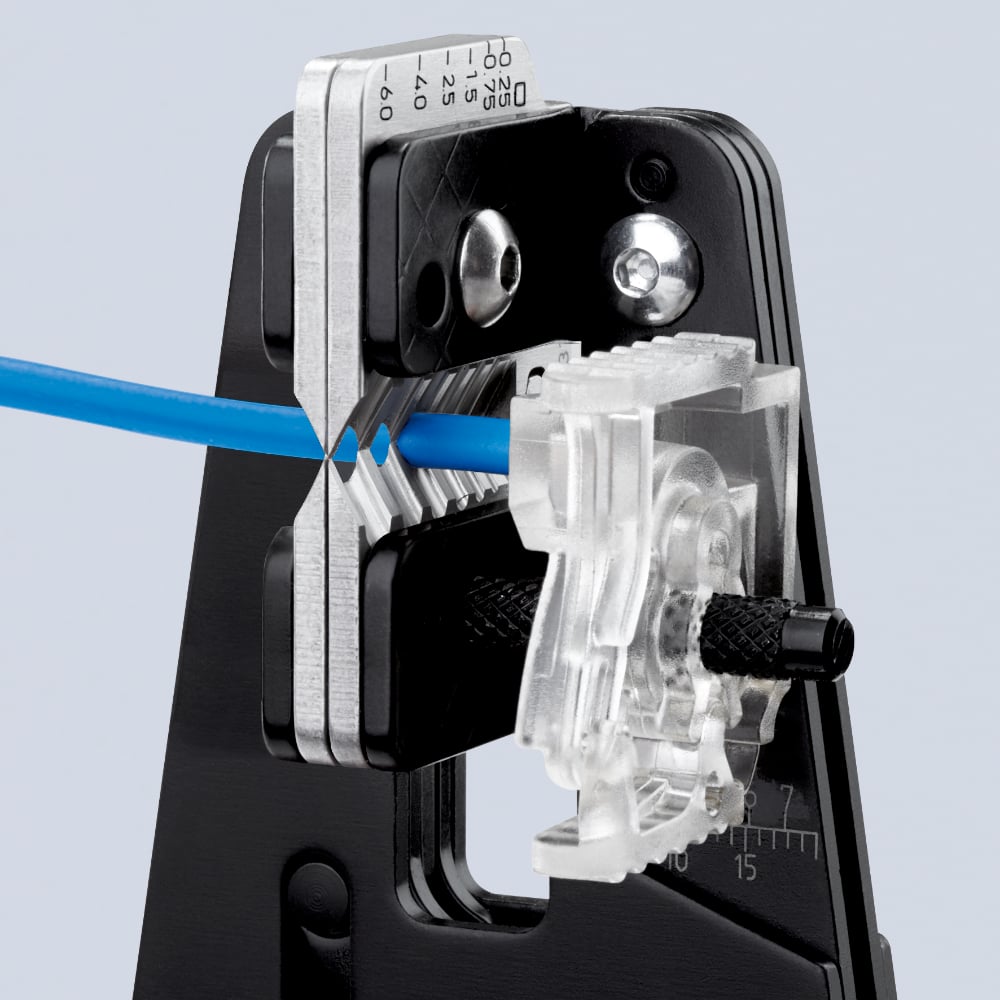

• A second pair of blades holds the remaining insulation reliably in place
• Replaceable shaped blade adapted precisely to the respective conductor cross-section
• With length stop for constant stripping length during repetitive work
Technical attributes
| Part No. | 12 12 06 |
|---|---|
| EAN | 4003773049005 |
| Pliers | burnished |
| Handles | with multi-component handles |
| Weight | 445 g |
| Dimensions | 195 x 73 x 19 mm |
| REACH compliant | contains SVHC |
| RoHS compliant | not applicable |
| Stripping capacities in square millimetres | 0.25 / 0.75 / 1.5 / 2.5 / 4.0 / 6.0 mm² |
