09 02 240

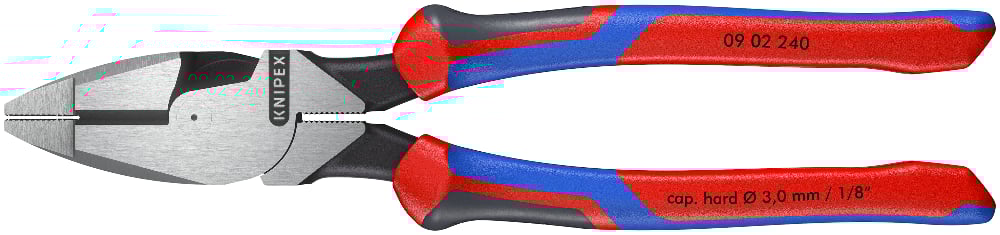

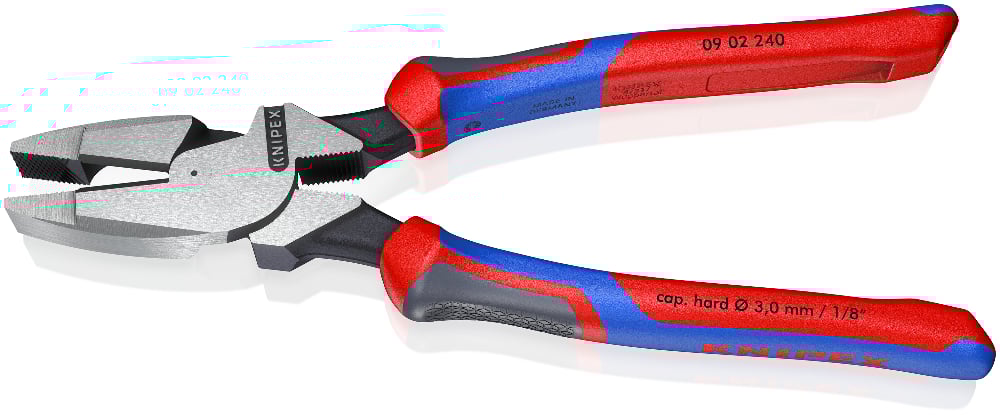

Lineman’s Pliers
• High transmission ratio for easy cutting
• Requires 50 % less effort compared with conventional combination pliers due to optimised transmission ratio
• Solid construction for heaviest strain; universally applicable
• Ergonomically optimised handle shape for firm contact to the hand and fatigue reducing operation
• Particularly effective cross-hatched knurled gripping zone in the jaws – for strong gripping and pulling

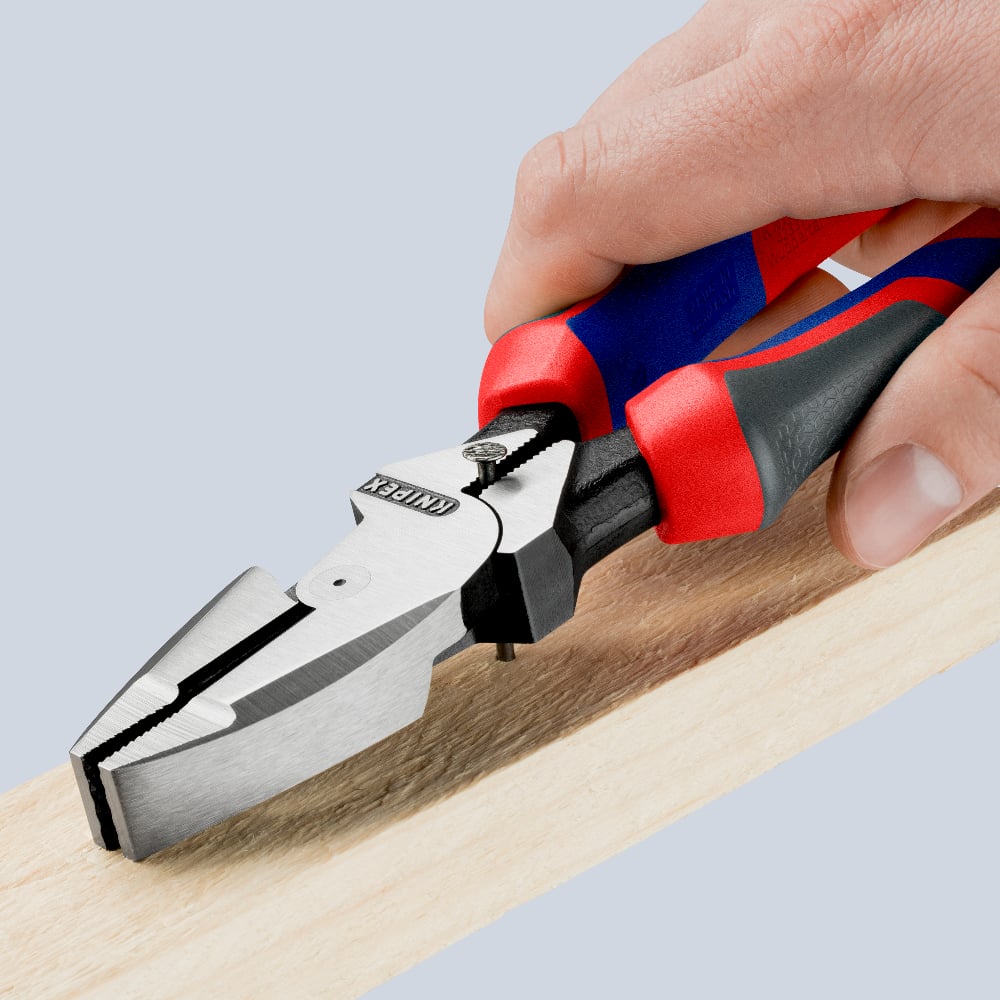

• Additional gripping zone below the joint for powerful leverage and pressing performance

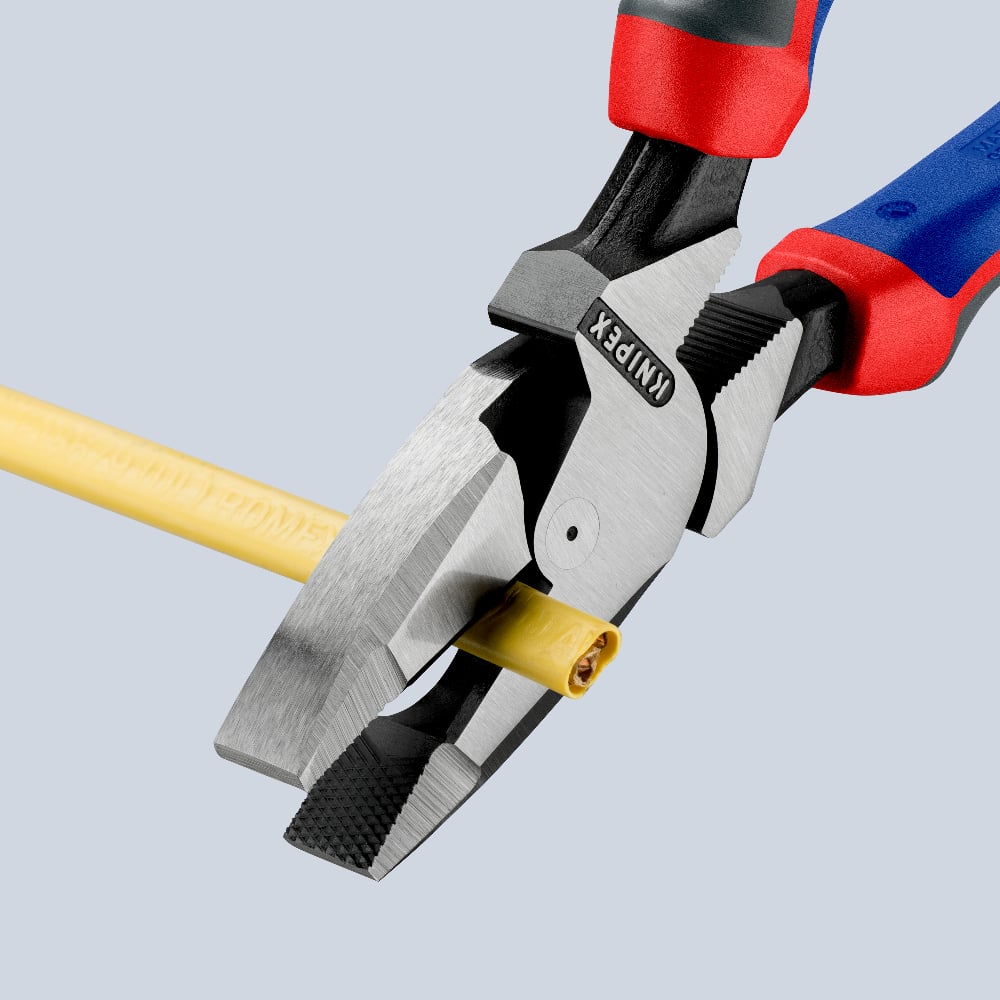

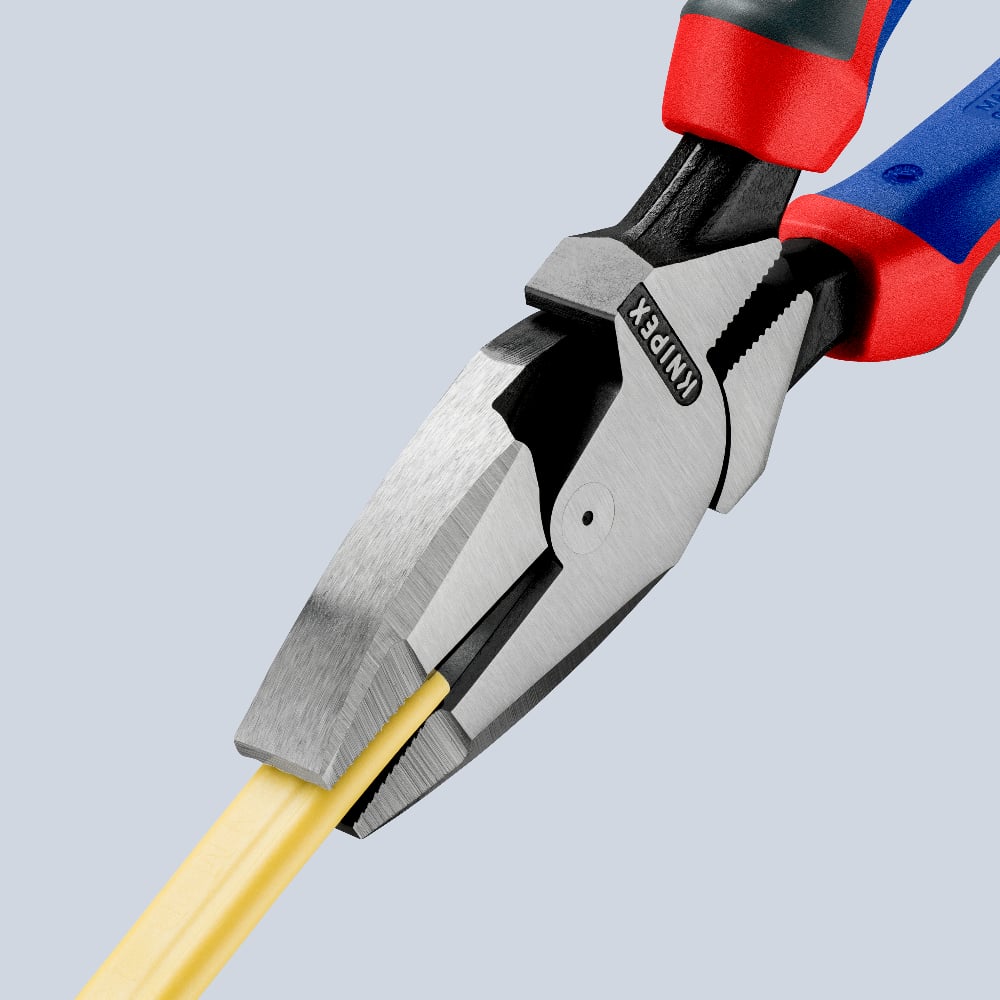

• With cutting edges for soft and hard wire
• Cutting edges additionally induction-hardened, cutting edge hardness approx. 62 HRC
• American style
• With comfort handles: consisting of three ergonomic components for optimized handling and equipped with two KNIPEXtend interfaces for extensions
Technical attributes
| Part No. | 09 02 240 |
|---|---|
| EAN | 4003773065005 |
| Pliers | black atramentized |
| Head | polished |
| Handles | with comfort handles |
| Weight | 460 g |
| Dimensions | 240 x 55 x 25 mm |
| Standard | DIN ISO 5746 ASME B107.20 |
| REACH compliant | does not contain SVHC |
| RoHS compliant | not applicable |
| Cutting capacities medium hard wire (diameter) | Ø 4.6 mm |
| Cutting capacities hard wire (diameter) | Ø 3.0 mm |
