09 02 240

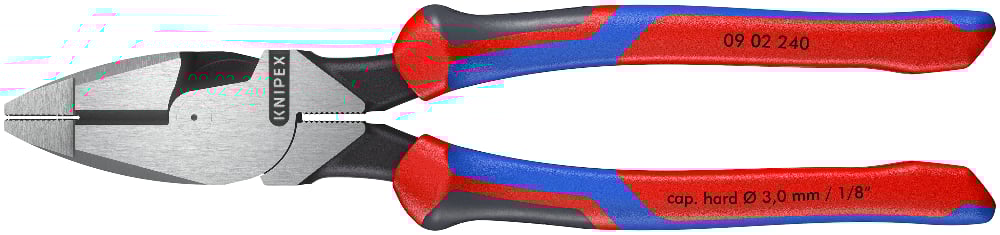

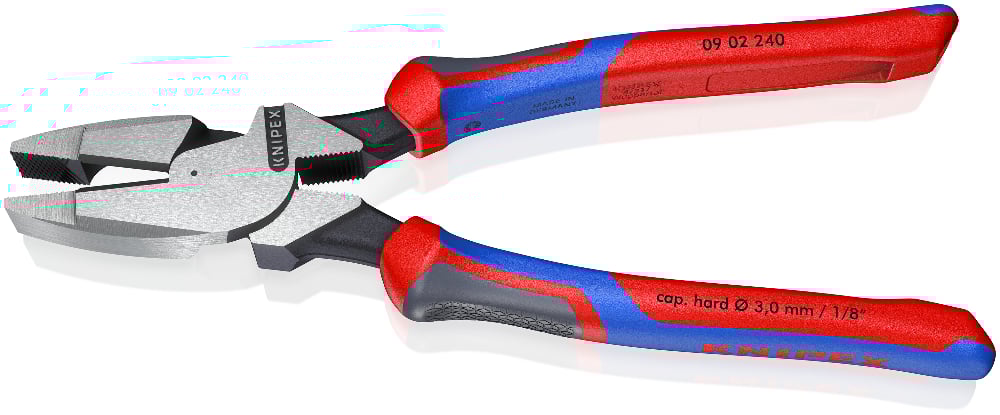

Lineman’s Pliers

• High transmission ratio for easy cutting
• Requires 50 % less effort compared with conventional combination pliers due to optimised transmission ratio
• Solid construction for heaviest strain; universally applicable
• Ergonomically optimised handle shape for firm contact to the hand and fatigue reducing operation

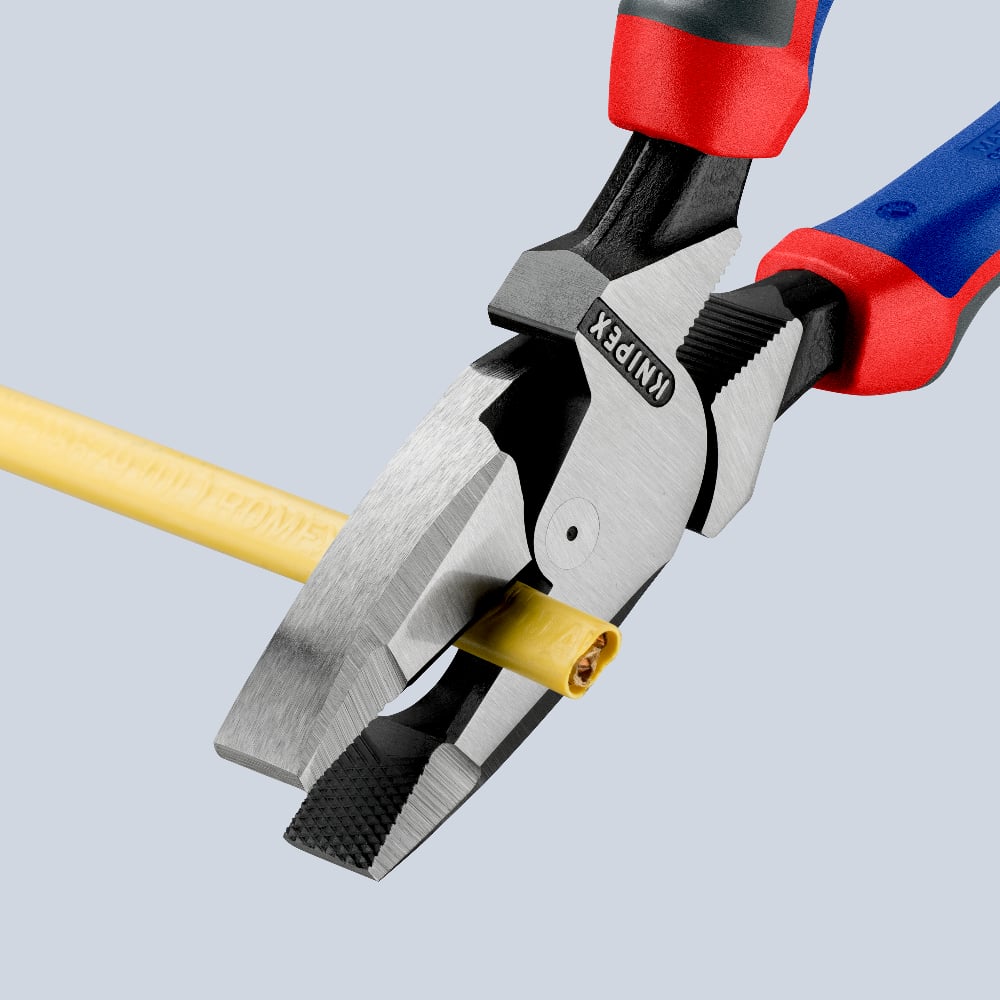

• Particularly effective cross-hatched knurled gripping zone in the jaws – for strong gripping and pulling

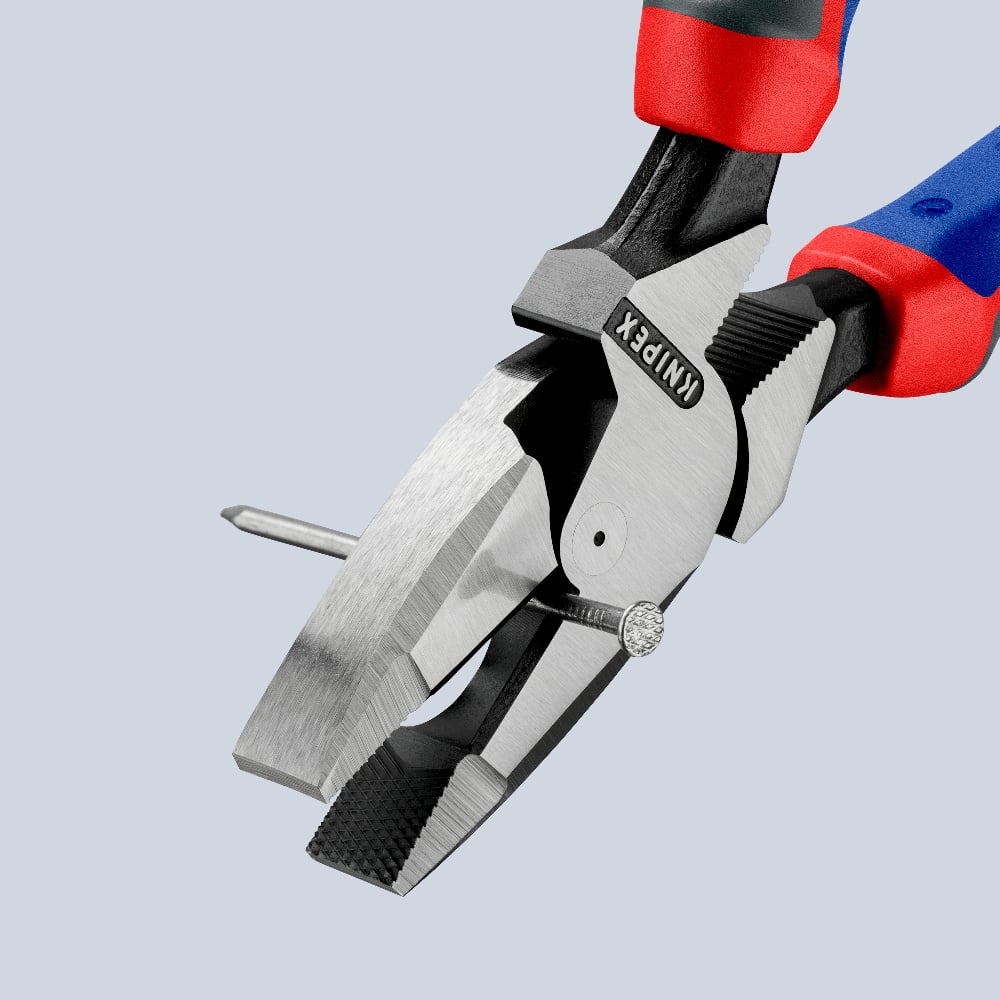

• Additional gripping zone below the joint for powerful leverage and pressing performance

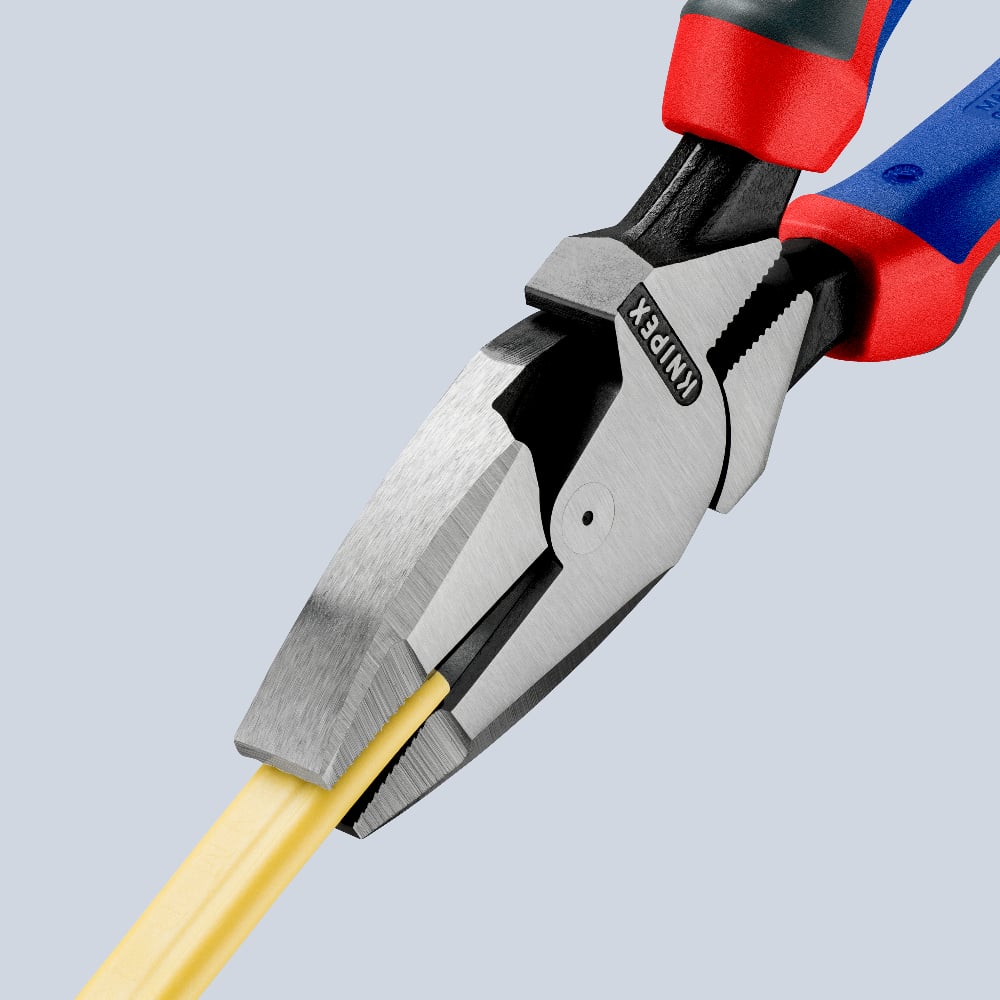

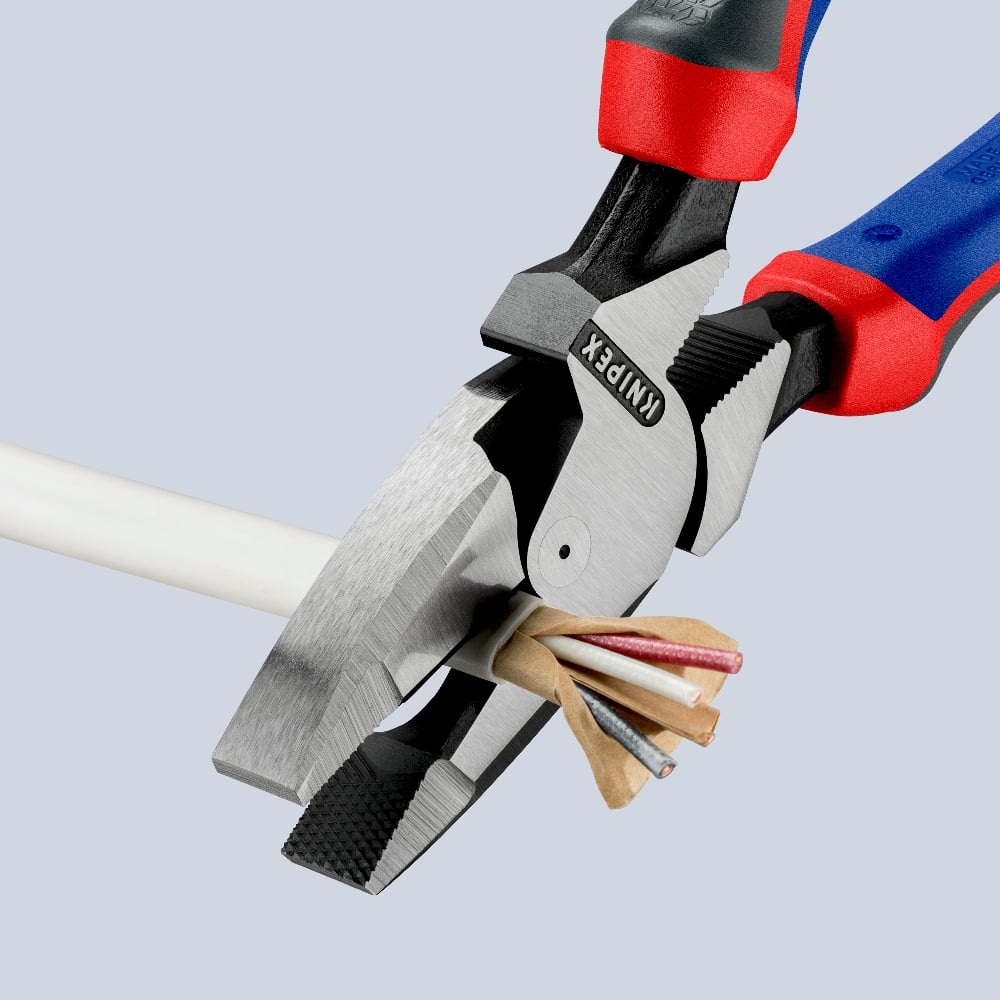

• With cutting edges for soft and hard wire
• Cutting edges additionally induction-hardened, cutting edge hardness approx. 62 HRC
• American style
• With comfort handles: consisting of three ergonomic components for optimized handling and equipped with two KNIPEXtend interfaces for extensions

Technical attributes

Part No. 09 02 240
EAN 4003773065005
Pliers black atramentized
Head polished
Handles with comfort handles
Weight 460 g
Dimensions 240 x 55 x 25 mm
Standard DIN ISO 5746 ASME B107.20
REACH compliant does not contain SVHC
RoHS compliant not applicable
Cutting capacities medium hard wire (diameter) Ø 4.6 mm
Cutting capacities hard wire (diameter) Ø 3.0 mm
