02 06 180

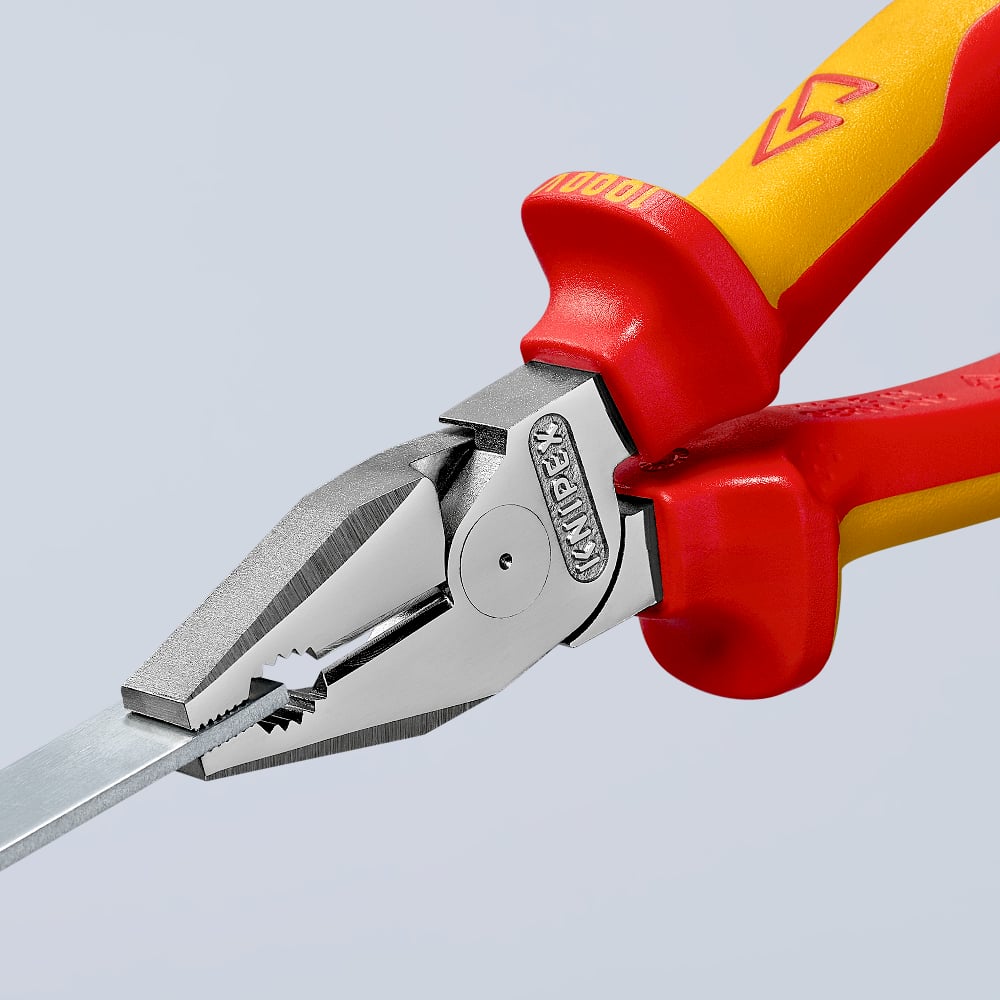

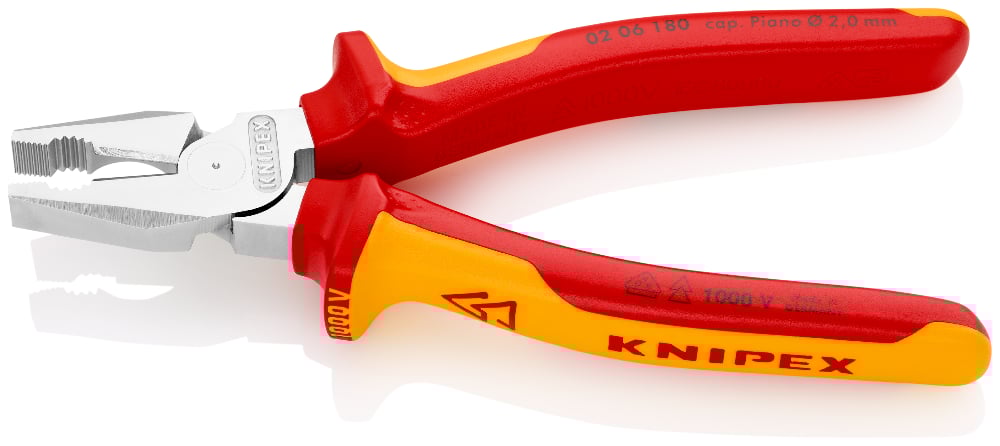

High Leverage Combination Pliers
• 35% less effort required than with conventional combination pliers
• With cutting edges (hardness approx. 63 HRC) for heavy duty
• Easier work due to optimised leverage
• Easier cutting, powerful gripping, bending and pulling
• Long cutting edges for thicker cables
• With gripping zones for flat and round material, suitable for versatile use
• Precise, minimal light gap between the gripping jaws to ensure optimal function of the cutting edges
• Cutting edges additionally induction-hardened, cutting edge hardness approx. 63 HRC
Technical attributes
| Part No. | 02 06 180 |
|---|---|
| EAN | 4003773010012 |
| Pliers | chrome-plated |
| Head | chrome-plated |
| Handles | insulated with multi-component grips, VDE-tested |
| Weight | 247 g |
| Dimensions | 180 x 56 x 20 mm |
| Standard | DIN ISO 5746 DIN EN 60900 IEC 60900 |
| REACH compliant | does not contain SVHC |
| RoHS compliant | not applicable |
| Cutting capacities hard wire (diameter) | Ø 2.5 mm |
| Cutting capacities piano wire (diameter) | Ø 2.0 mm |
| Cutting capacity copper cable, multiple-stranded | 16.0 mm² |
| VDE tested | yes |
