02 05 180

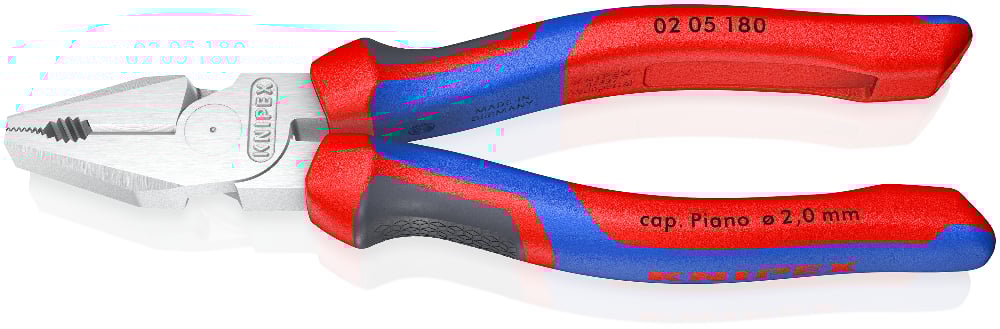

High Leverage Combination Pliers
• 35% less effort required than with conventional combination pliers
• With cutting edges (hardness approx. 63 HRC) for heavy duty
• Easier work due to optimised leverage

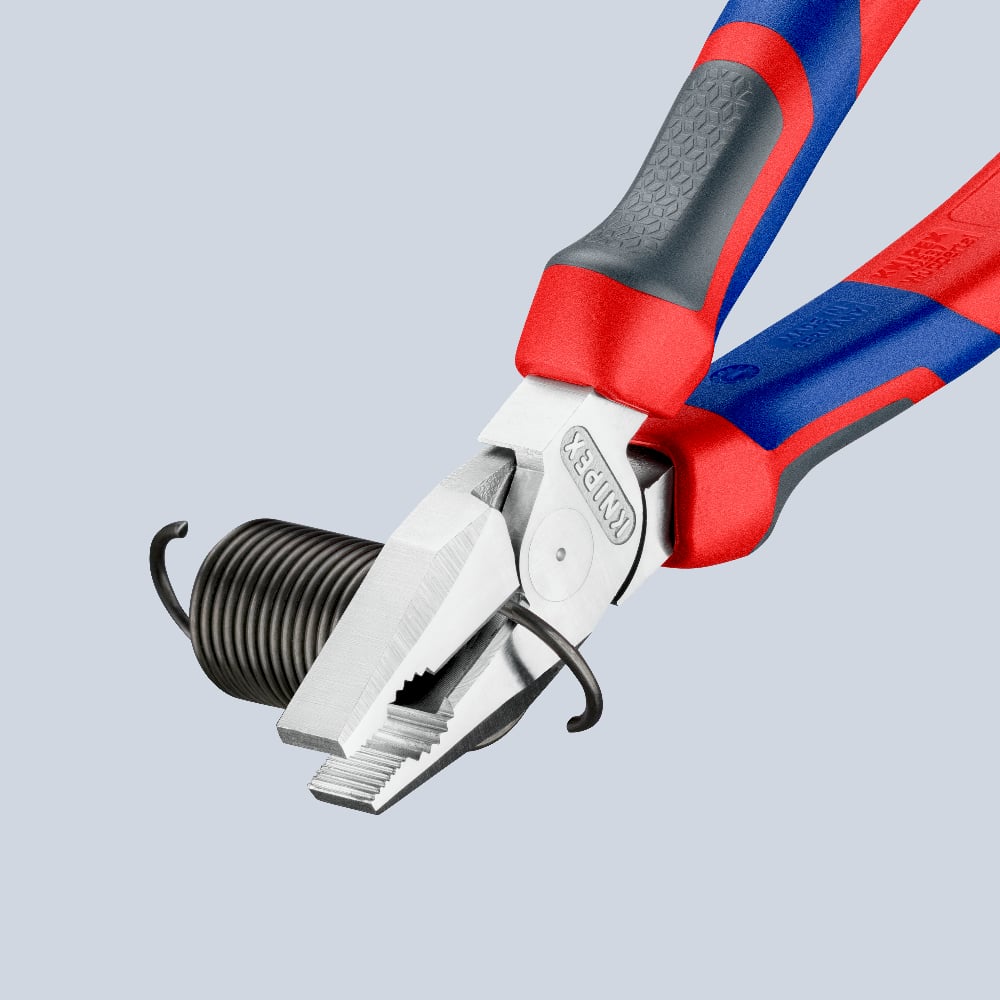

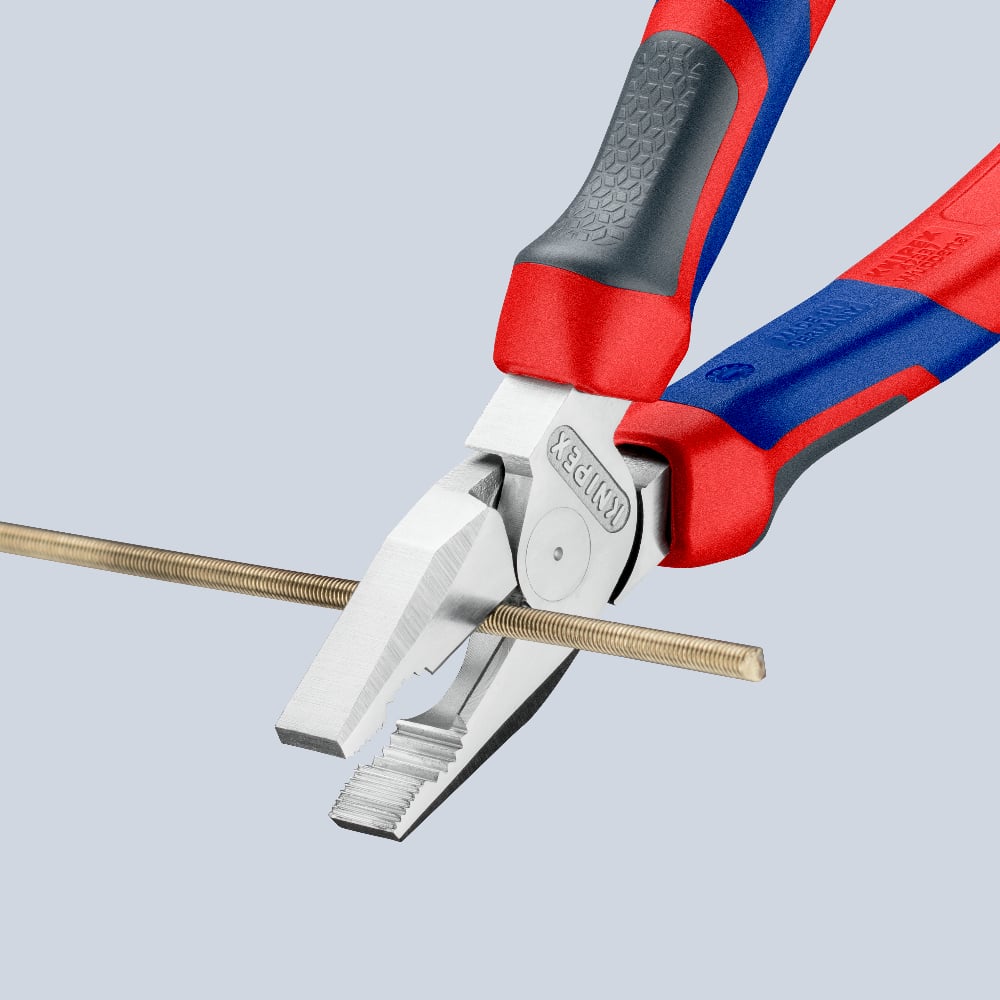

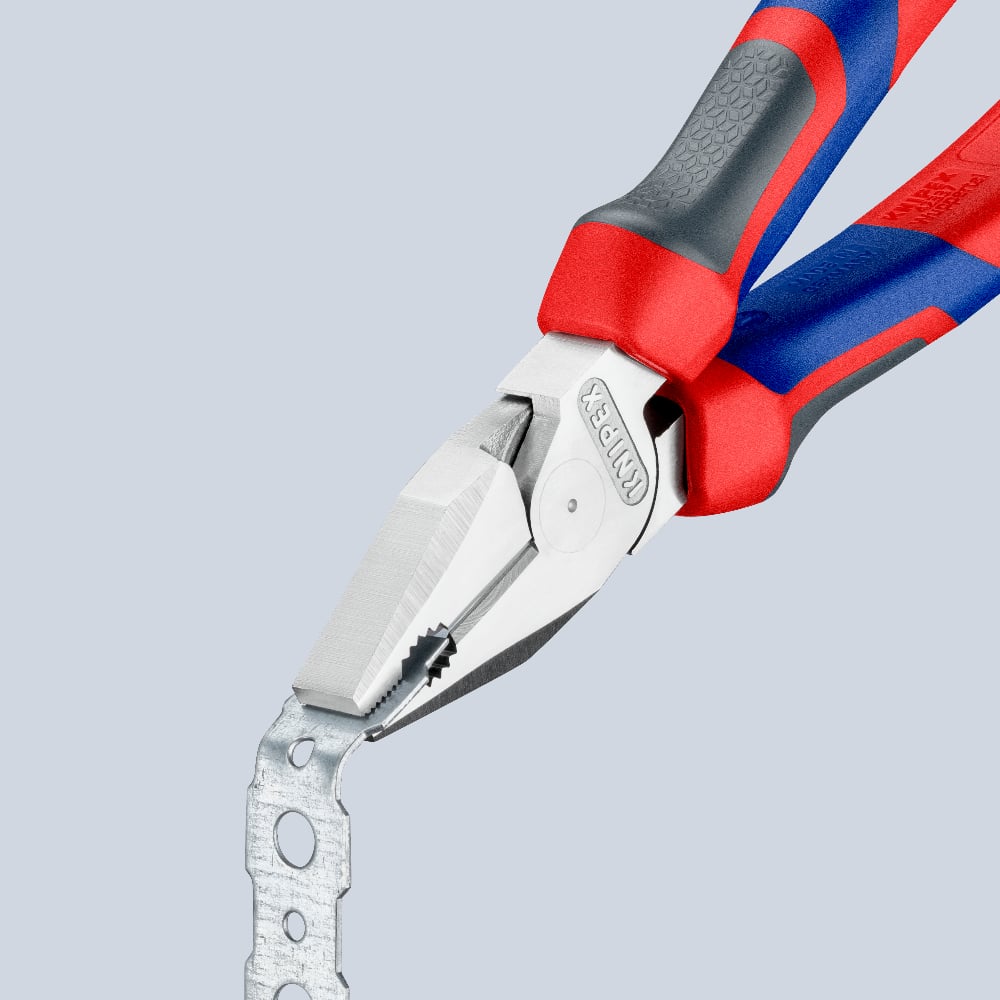

• Easier cutting, powerful gripping, bending and pulling
• Long cutting edges for thicker cables

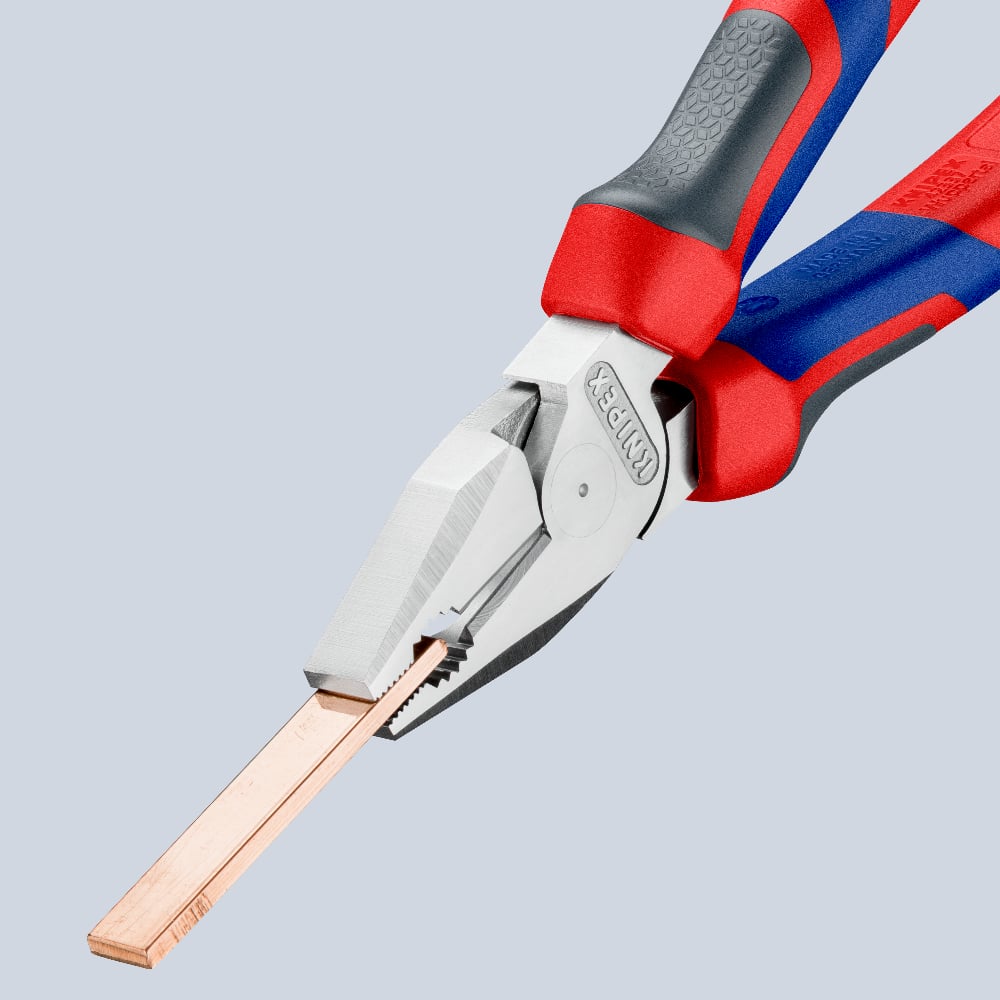

• With gripping zones for flat and round material, suitable for versatile use
• Precise, minimal light gap between the gripping jaws to ensure optimal function of the cutting edges
• Cutting edges additionally induction-hardened, cutting edge hardness approx. 63 HRC
• With comfort handles: consisting of three ergonomic components for optimized handling and equipped with two KNIPEXtend interfaces for extensions
Technical attributes
| Part No. | 02 05 180 |
|---|---|
| EAN | 4003773043072 |
| Pliers | chrome-plated |
| Head | chrome-plated |
| Handles | with comfort handles |
| Weight | 236 g |
| Dimensions | 180 x 51 x 21 mm |
| Standard | DIN ISO 5746 |
| REACH compliant | does not contain SVHC |
| RoHS compliant | not applicable |
| Cutting capacities hard wire (diameter) | Ø 2.5 mm |
| Cutting capacities piano wire (diameter) | Ø 2.0 mm |
| Cutting capacity copper cable, multiple-stranded | 16.0 mm² |
