02 01 200

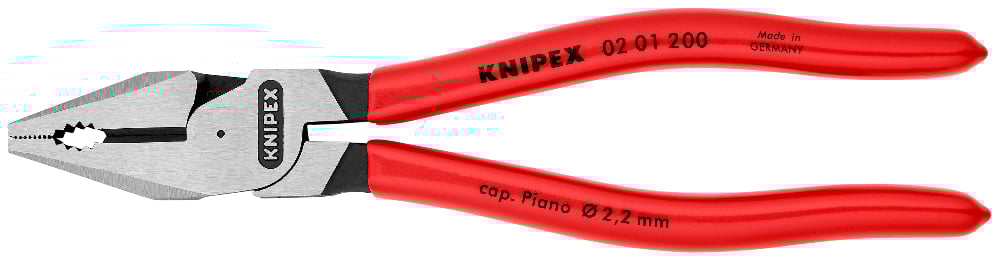

High Leverage Combination Pliers
• 35% less effort required than with conventional combination pliers
• Easier work due to optimised leverage

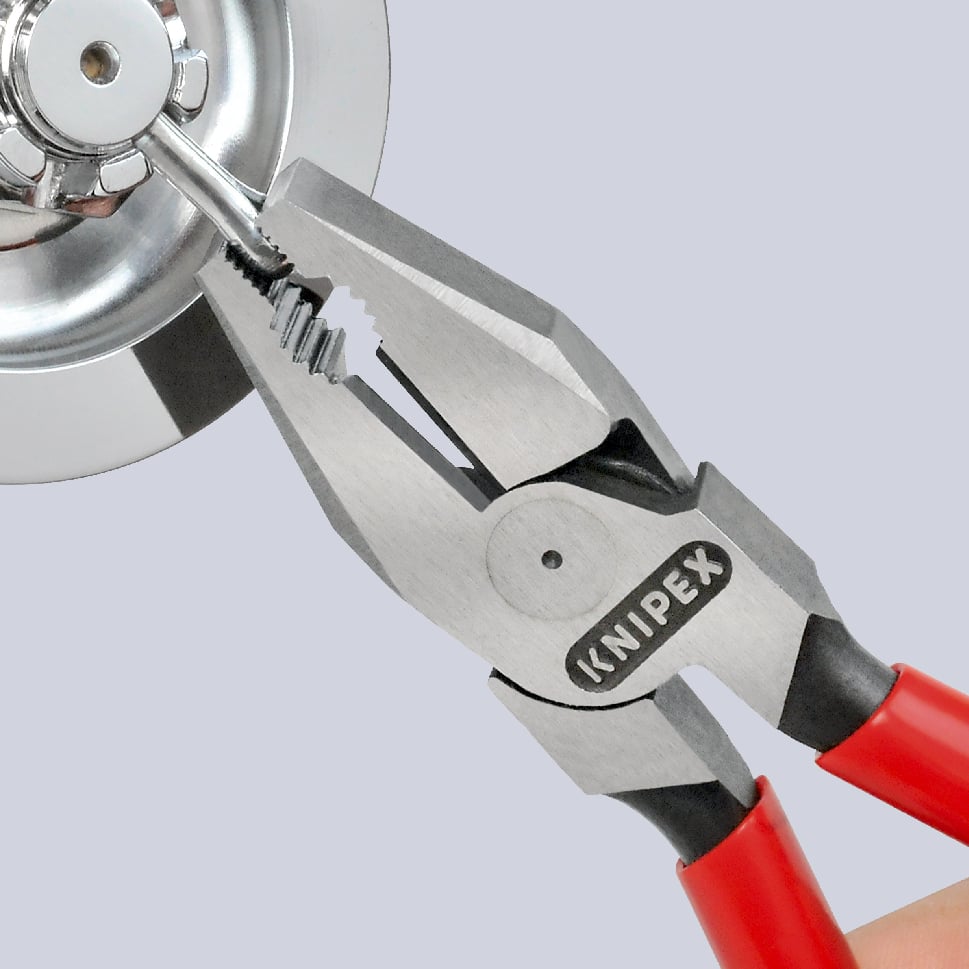

• Easier cutting, powerful gripping, bending and pulling

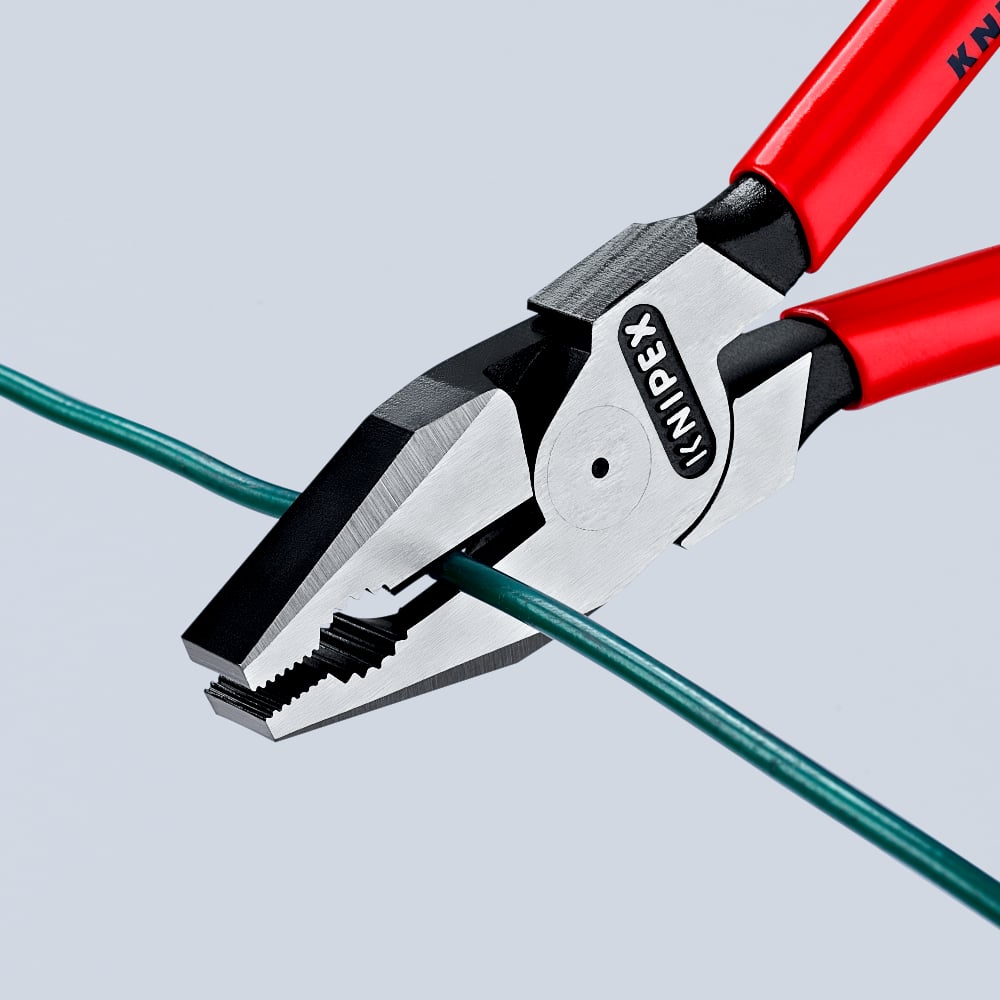

• Long cutting edges for thicker cables

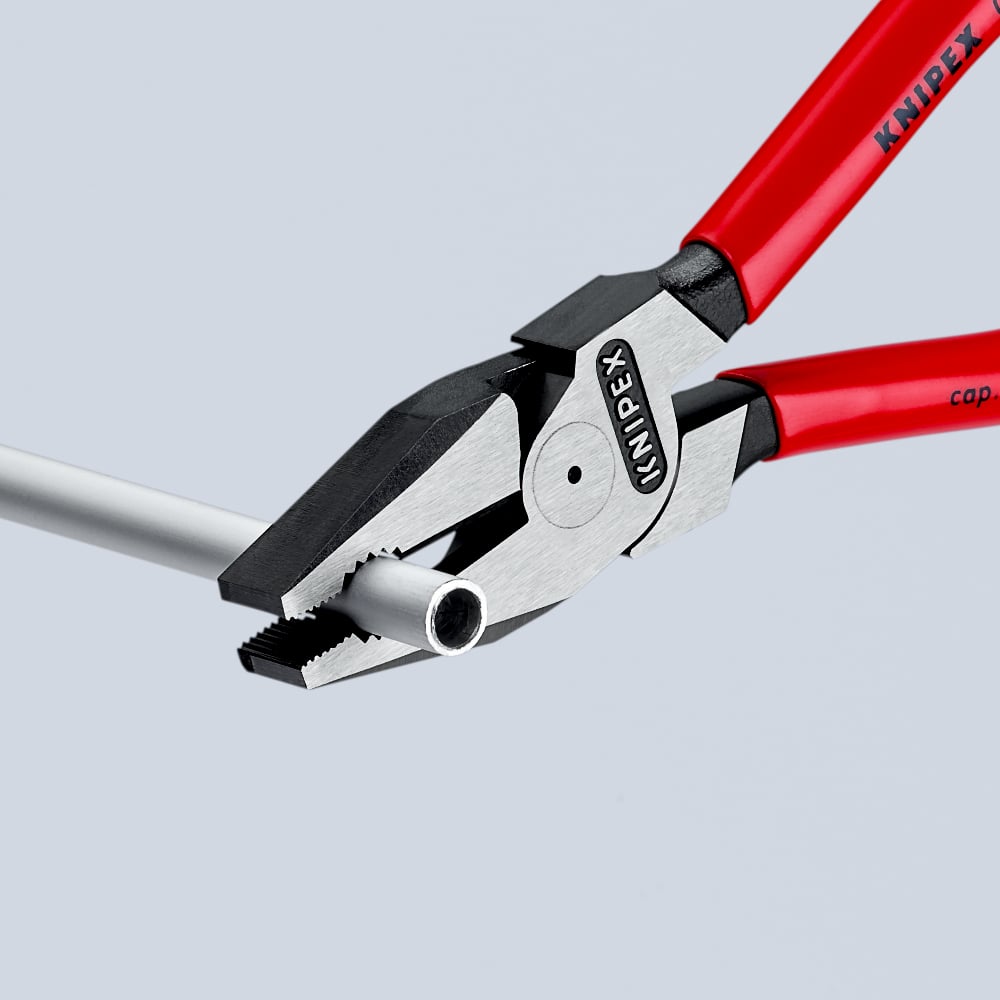

• With gripping zones for flat and round material, suitable for versatile use
• Precise, minimal light gap between the gripping jaws to ensure optimal function of the cutting edges
• Cutting edges additionally induction-hardened, cutting edge hardness approx. 63 HRC
Technical attributes
| Part No. | 02 01 200 |
|---|---|
| EAN | 4003773039679 |
| Pliers | black atramentized |
| Head | polished |
| Handles | with plastic coating |
| Weight | 298 g |
| Dimensions | 200 x 51 x 15 mm |
| Standard | DIN ISO 5746 |
| REACH compliant | does not contain SVHC |
| RoHS compliant | not applicable |
| Cutting capacities hard wire (diameter) | Ø 2.8 mm |
| Cutting capacities piano wire (diameter) | Ø 2.2 mm |
| Cutting capacity copper cable, multiple-stranded | 25.0 mm² |
